TDS8 7KG 25.2V 350W 316L 200M Underwater Thruster For Submersible Vehicles

$338.00 USD

We are the OEM ODM manufacturer. For bulk orders and custom solutions, please contact us at official@hobbywater.com

We prioritize fast order processing. For in-stock items, orders placed before 4:00 PM (Beijing Time) will be shipped the same day. Standard orders typically ship within one week, while customized orders require approximately 15-30 business days for production and delivery. Delivery times may vary under special circumstances.

We ship to most countries worldwide. However, please ensure compliance with your local import regulations.

For the USA: We offer tax-inclusive shipping options. Expedited orders are shipped via DHL, UPS, or FedEx. Note: DHL does not allow undervaluation.
For other countries: Tax-inclusive shipping is available upon request. Otherwise, orders will be shipped via 4PX by default.

For specific shipping requirements, please contact us in advance.

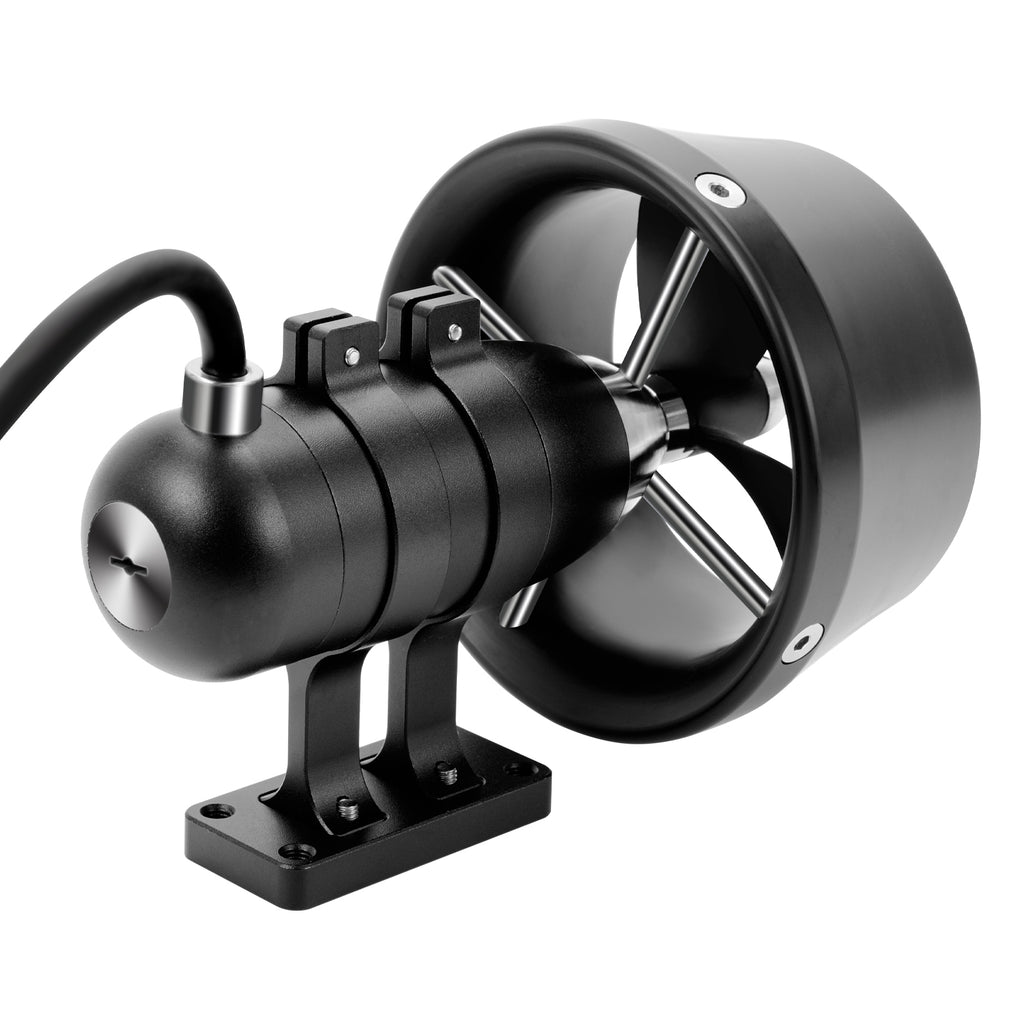

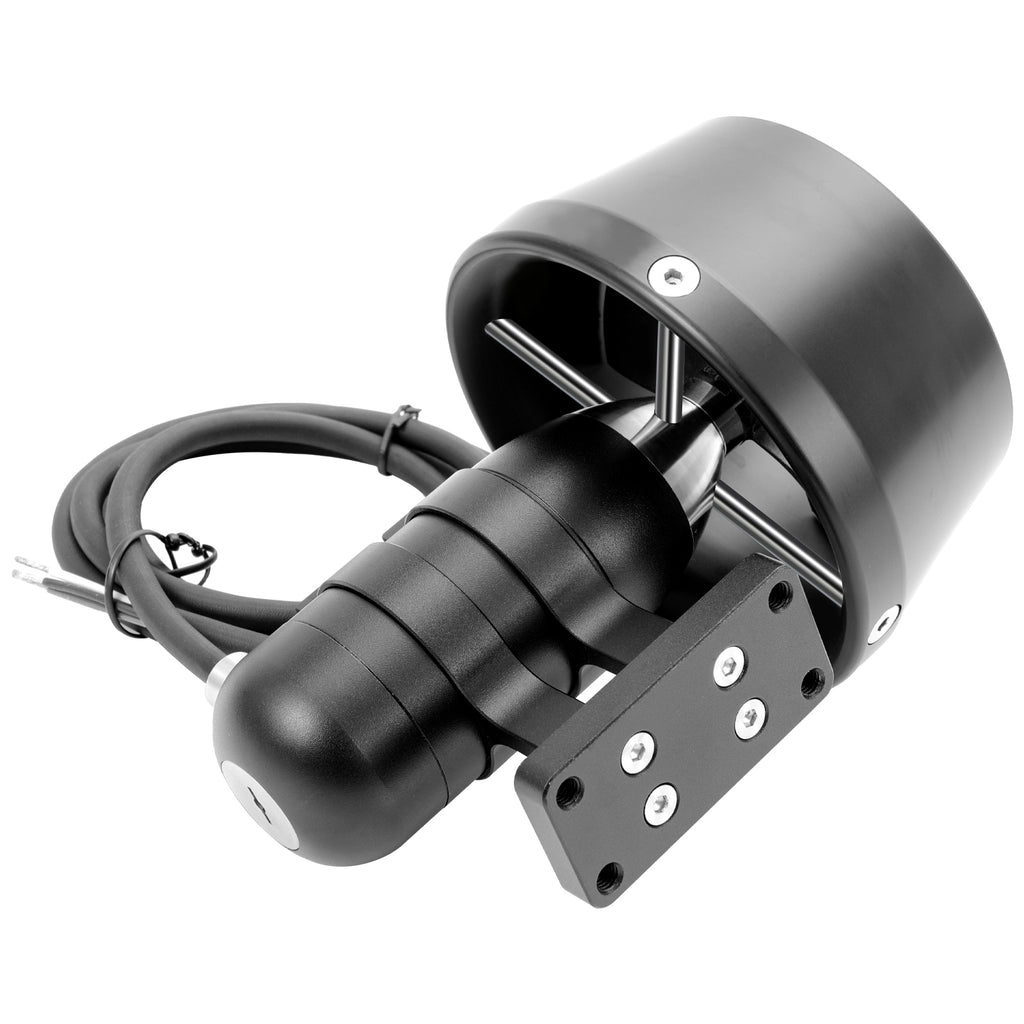

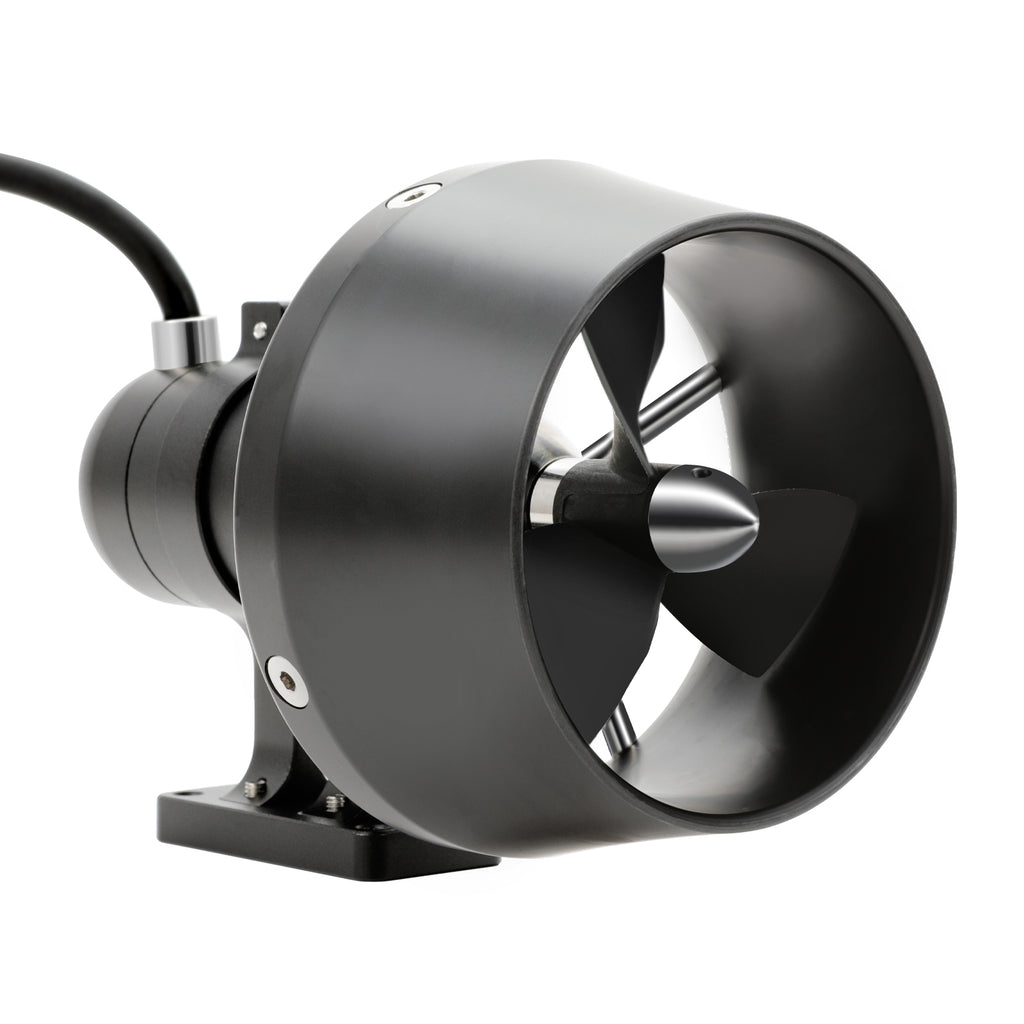

Introducing the TDS8 Underwater Thruster: Your Ultimate Powerhouse for Subsea Exploration

Experience the cutting-edge power and reliability of the TDS8 Underwater Thruster, designed for demanding underwater applications. Engineered with a maintainable fully sealed design and adaptive rotating dynamic sealing structure, this thruster ensures optimal performance even in the most challenging environments.

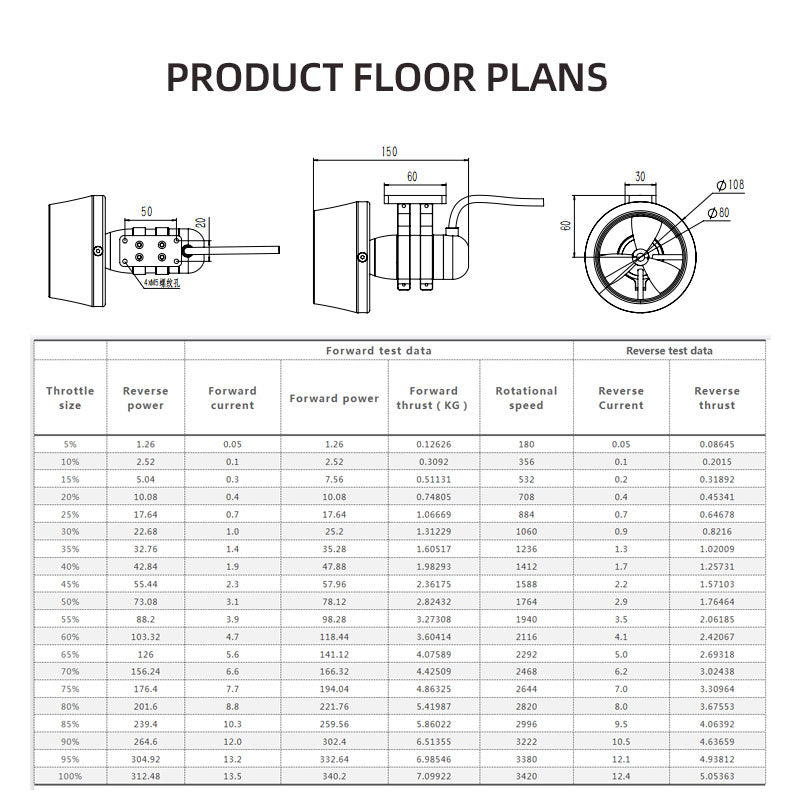

Specifications:

Product Model: TDS8
Sealing Type: Maintainable fully sealed
Sealing Structure: Adaptive rotating dynamic sealing structure
Pressure Compensation: Positive pressure oil pressure compensation
Shell Material: 6061 aluminum alloy hard oxidation
Air Deflector Material: POM
Installation Seat Material: 6061 aluminum alloy hard oxidation
Rotary Shaft Material: 316L stainless steel
Cable Material: Outer layer of polyurethane (TPU), inner layer of polytetrafluoroethylene (PTFE)
Propeller Material: PC/nylon/aluminum alloy (customized)
Propeller Diameter: 80mm
Cable Specification: 3x18awg, outer diameter 6.53mm, length 1m

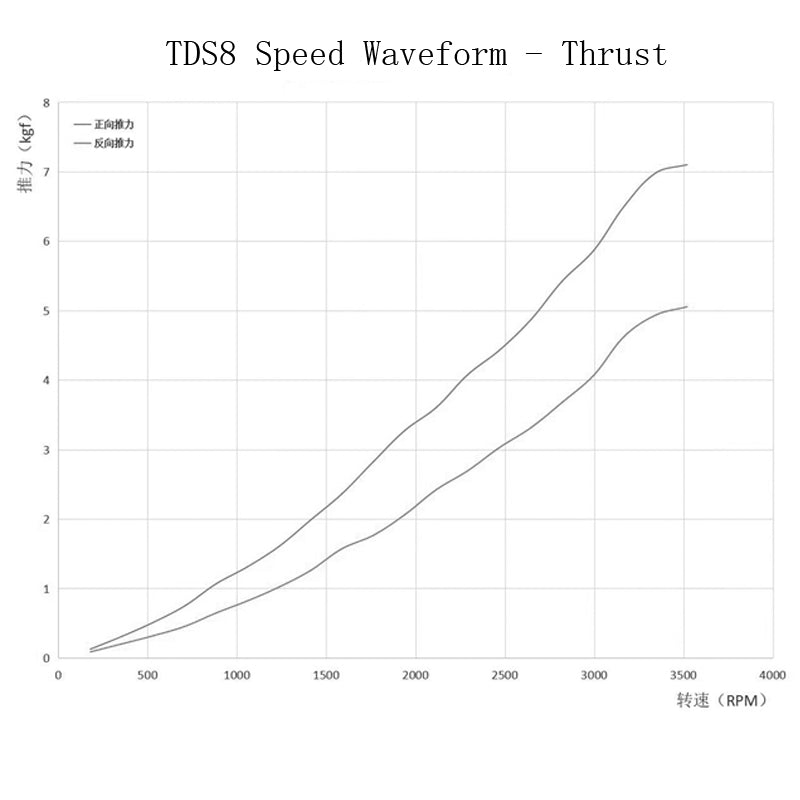

Rated Thrust: 7.0kg (forward) / 5.0kg (reverse)
Rated Power: 350W
Rated Voltage: 25.2V
Pressure Resistance Depth: 200m
48V version can be customized

Typical Applications:

Submersible vehicles
Underwater drones
Marine research equipment
ROVs (Remotely Operated Vehicles)
AUVs (Autonomous Underwater Vehicles)
Underwater inspection and maintenance tools
Subsea construction support

Upgrade your underwater operations with the TDS8 Underwater Thruster, and ensure your missions are powered by the best in class. Dive deeper, go further, and explore more with confidence!

1. For Your Safety:

Keep Clear: Never put hands, feet, or anything near the propeller when it's plugged in. It can spin without warning and cause injury.
No Water, No Power: Do not run the thruster in air for more than 10 seconds. It needs water to cool itself or it will break.

2. For The Thruster's Safety:

Check Seals: Always check that the rubber O-rings are clean, greased, and undamaged before putting it in water.
Avoid Debris: Keep it away from weeds, sand, and plastic bags. These can jam and break the propeller.
No Regular Glue: Do not use normal threadlocker (screw glue) on any screws. It will crack the plastic body. Only use a kind that is safe for polycarbonate.

3. Simple Rules:

Test First: Always test in a bucket or pool before going to open water.
Rinse After Use: Always rinse with fresh water after use, especially in saltwater.
Store Safely: Keep it in a case to protect it from bumps and dust.

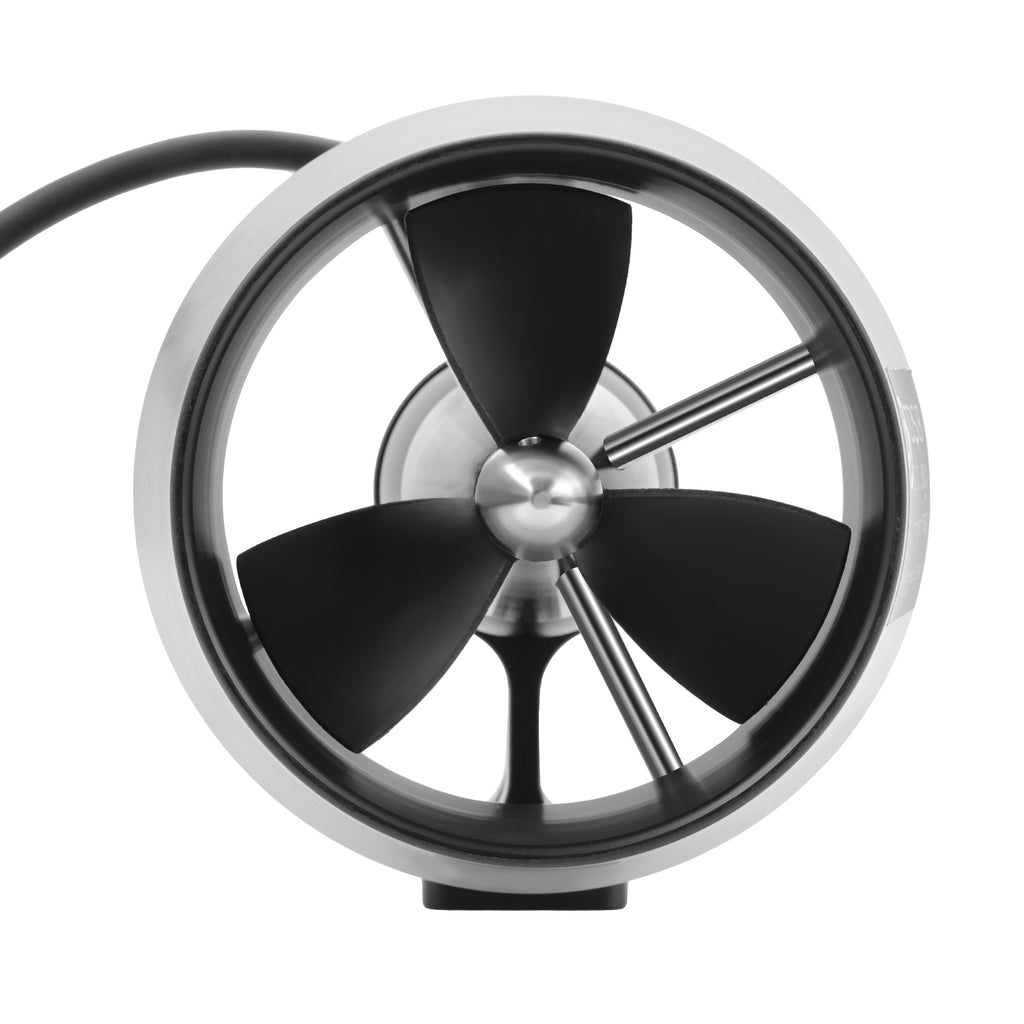

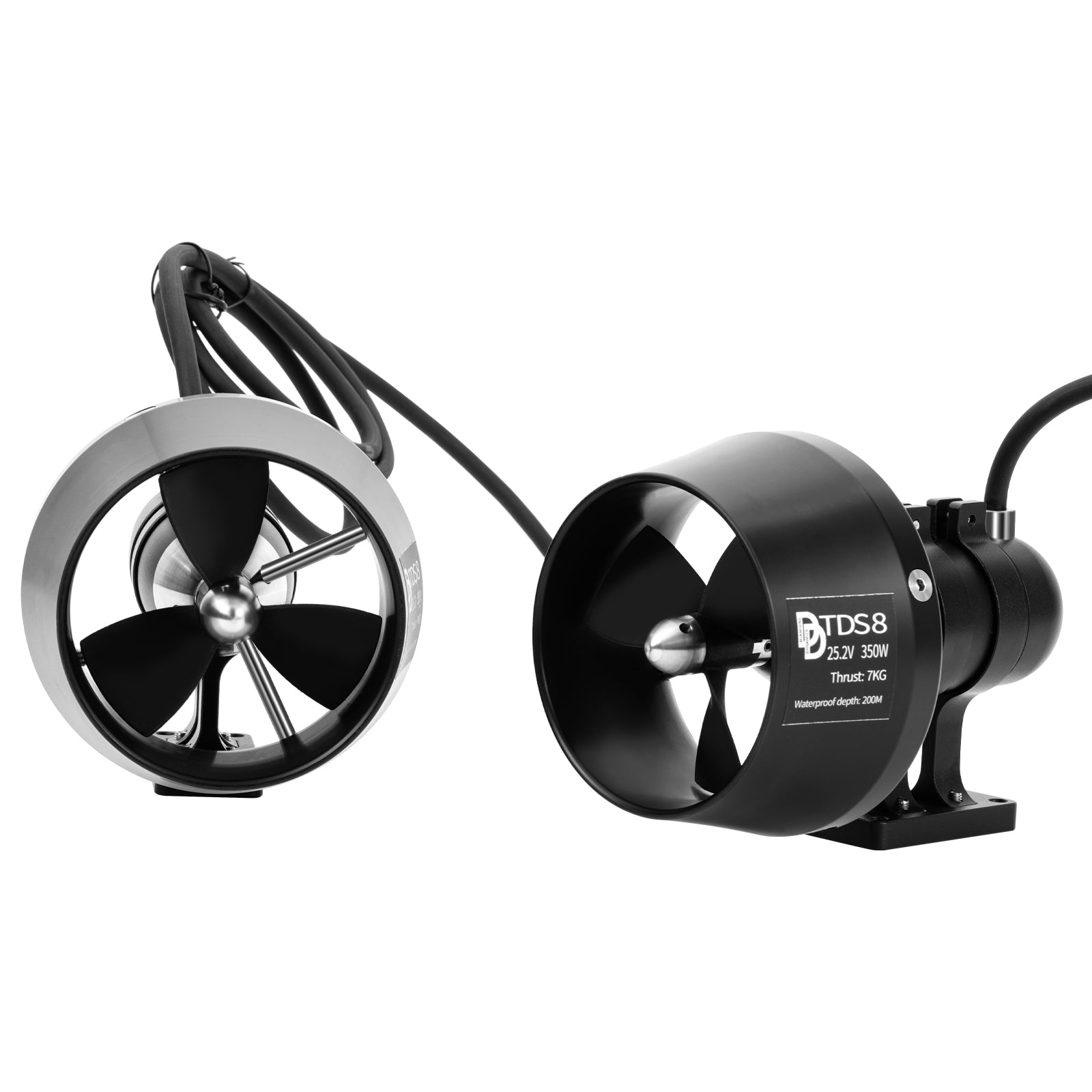

1. Two Propeller Types:

You get two propellers: one labeled "CW" (spins clockwise) and one labeled "CCW" (spins counterclockwise).

2. How Thrust Works:

Forward Thrust (Recommended):A CW propeller pushes best when spinning clockwise.A CCW propeller pushes best when spinning counterclockwise.✅ Use this for maximum power and efficiency.
Reverse Thrust:Both can also spin the opposite way to push backwards.⚠️ This works but is weaker and less efficient.

Quick Tip: Always check the label (CW/CCW) to make sure you have the right propeller installed for the direction you want to go. For the strongest push, use forward thrust.

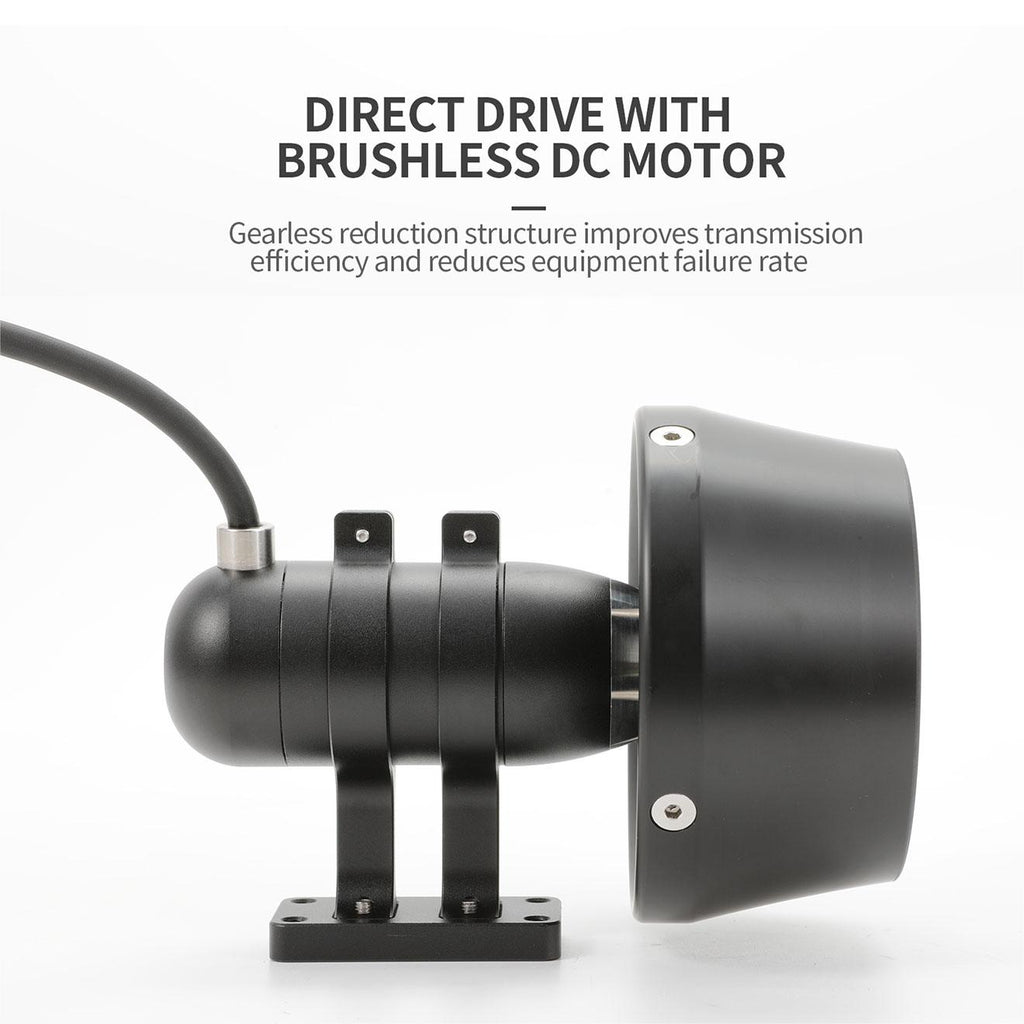

The Thruster: The main unit, which contains a brushless DC motor.

Power Source: A battery pack or power supply.
A Controller: Something to tell it how fast and which way to spin (e.g., a remote control).

How to Connect It:

If your thruster has a built-in ESC:
You can often connect it directly to a standard PWM receiver.
Important Note on Power:
If your receiver or ESC does not have a BEC (Built-in Eliminator Circuit) to power itself, you will need to add a separate BEC module. This provides the necessary power for the electronics.

It's normal for our thrusters to be loud.They use plastic bushings, so small movements between parts can cause sound. This noise is greatly reduced underwater, as water lubricates and cools the system.Never run them dry for more than a few seconds—it can permanently damage the bearings. Every thruster is tested to work properly.
