TDS10 Underwater Thruster 24V 850W 50m Waterproof For Electric Trawler

$249.00 USD

We are the OEM ODM manufacturer. For bulk orders and custom solutions, please contact us at official@hobbywater.com

We prioritize fast order processing. For in-stock items, orders placed before 4:00 PM (Beijing Time) will be shipped the same day. Standard orders typically ship within one week, while customized orders require approximately 15-30 business days for production and delivery. Delivery times may vary under special circumstances.

We ship to most countries worldwide. However, please ensure compliance with your local import regulations.

For the USA: We offer tax-inclusive shipping options. Expedited orders are shipped via DHL, UPS, or FedEx. Note: DHL does not allow undervaluation.
For other countries: Tax-inclusive shipping is available upon request. Otherwise, orders will be shipped via 4PX by default.

For specific shipping requirements, please contact us in advance.

TDS10 8.4V–26V Waterproof Underwater Thruster | 10kg Brushless Motor

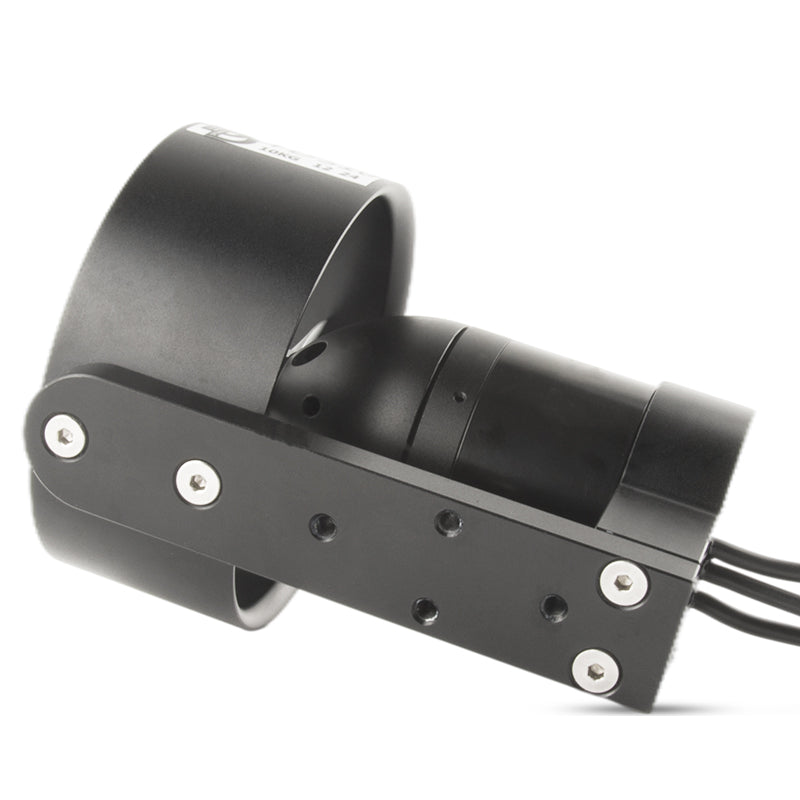

The TDS10 underwater motor is a compact, powerful, and efficient thruster engineered for demanding marine environments. With a high-efficiency brushless DC motor and precision-machined aluminum housing, it delivers smooth forward and reverse thrust for electric dinghies, surfboards, fishing boats, water rescue devices, and more.

Key Specifications:

Voltage Range: 8.4V–26V
Max Current: 35A
Max Thrust: 10kg ±0.35kg (forward), 7.5kg ±0.25kg (reverse)
Power Output: 850W ±10W
Weight: 800g
Cable Length: 1 meter
Operating Depth: ≤50m
Rotation Speed: 200–5200 rpm
Maintenance Cycle: 500h (freshwater), 300h (seawater)
Air Operation Limit: ≤20 seconds
Suitable for: Seawater and freshwater use

Product Highlights:

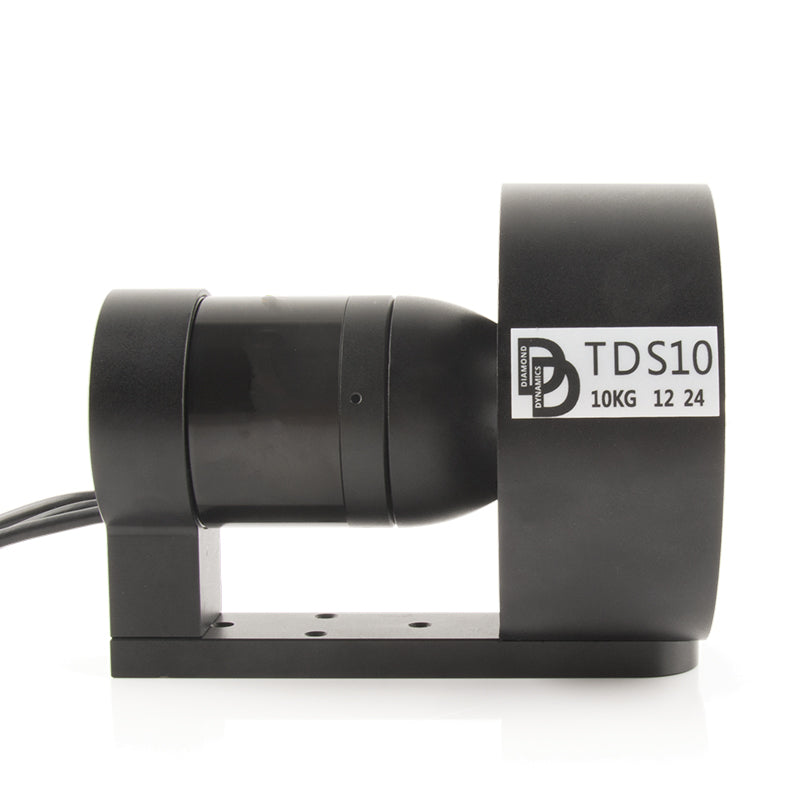

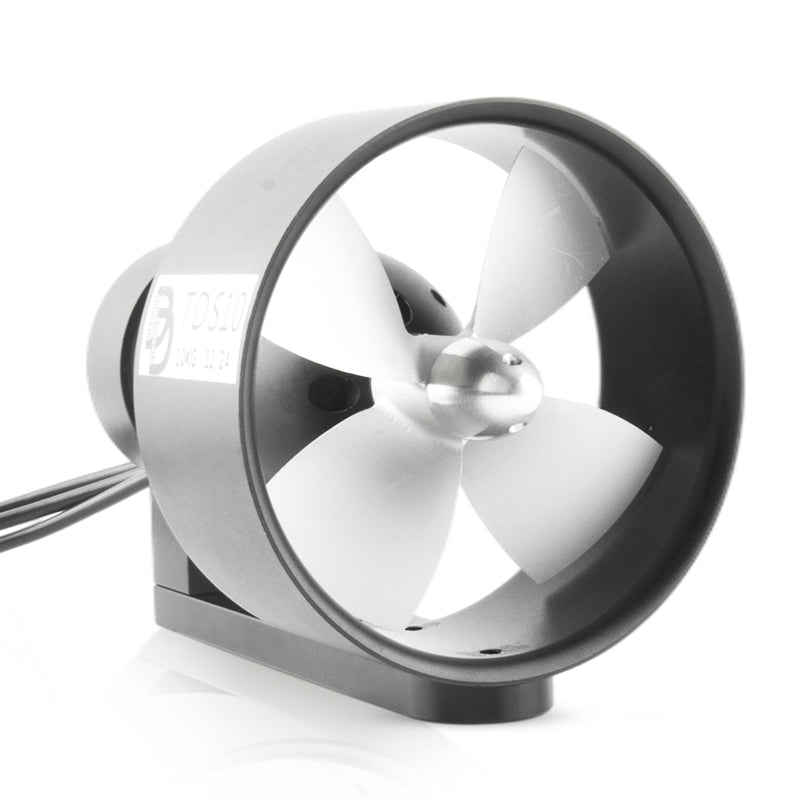

Durable CNC-machined 6061 aluminum alloy body with hard anodized surface
POM deflector: high strength and corrosion resistance
Gearless brushless DC motor reduces mechanical wear and improves reliability
High-quality waterproof cable (TUP PIFE insulation)
Bi-directional control: forward and reverse
Compact, lightweight and easy to install
Ideal for watercraft, water circulation systems, and emergency gear

Applications: Electric dinghies, e-surfboards, paddle assist boats, fishing boats, trawlers, unmanned boats, water rescue equipment, and more.

1. For Your Safety:

Keep Clear: Never put hands, feet, or anything near the propeller when it's plugged in. It can spin without warning and cause injury.
No Water, No Power: Do not run the thruster in air for more than 10 seconds. It needs water to cool itself or it will break.

2. For The Thruster's Safety:

Check Seals: Always check that the rubber O-rings are clean, greased, and undamaged before putting it in water.
Avoid Debris: Keep it away from weeds, sand, and plastic bags. These can jam and break the propeller.
No Regular Glue: Do not use normal threadlocker (screw glue) on any screws. It will crack the plastic body. Only use a kind that is safe for polycarbonate.

3. Simple Rules:

Test First: Always test in a bucket or pool before going to open water.
Rinse After Use: Always rinse with fresh water after use, especially in saltwater.
Store Safely: Keep it in a case to protect it from bumps and dust.

1. Two Propeller Types:

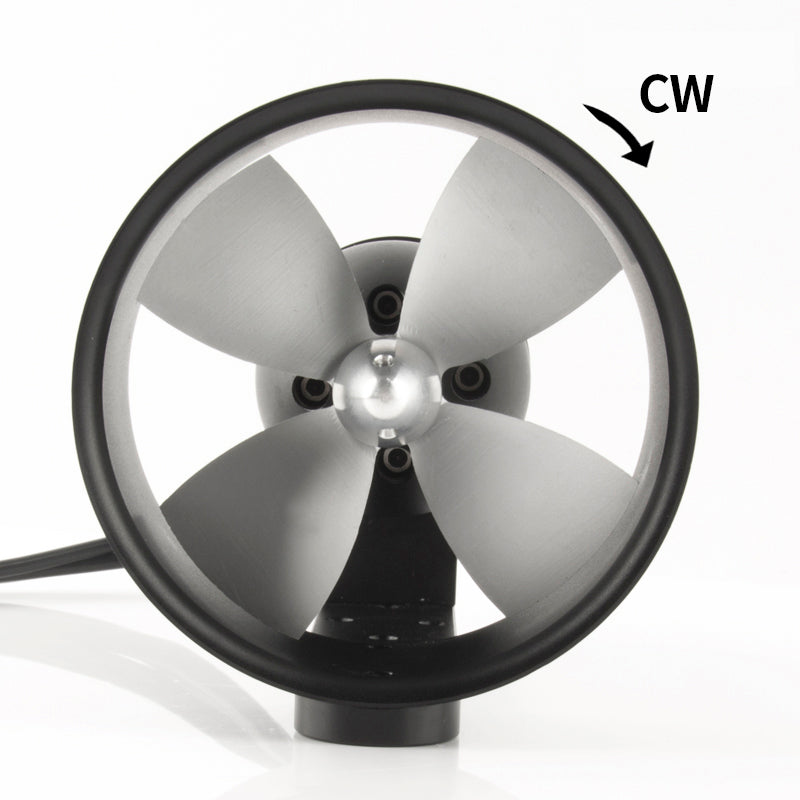

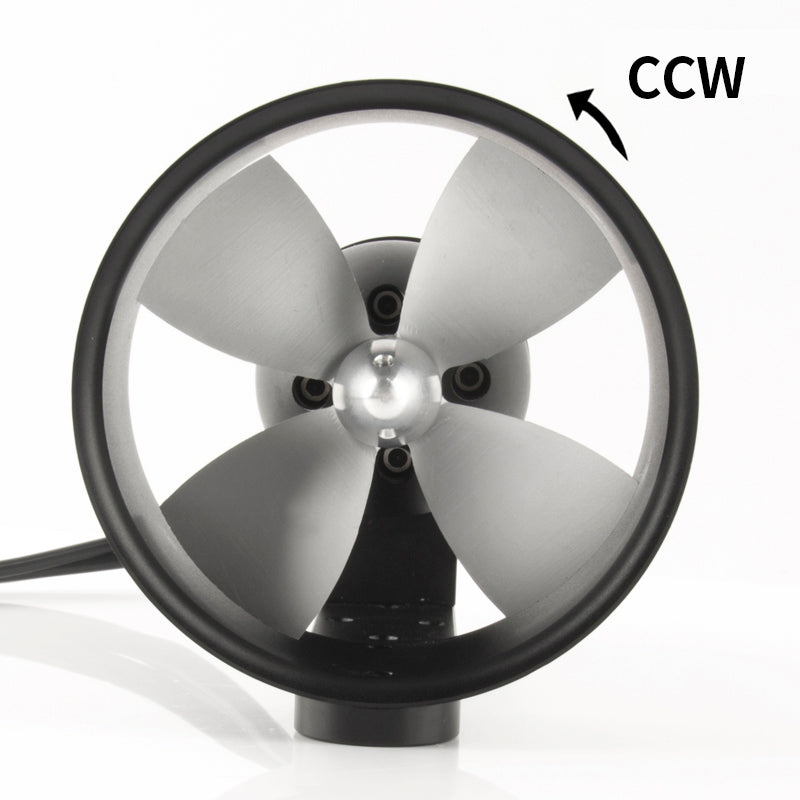

You get two propellers: one labeled "CW" (spins clockwise) and one labeled "CCW" (spins counterclockwise).

2. How Thrust Works:

Forward Thrust (Recommended):A CW propeller pushes best when spinning clockwise.A CCW propeller pushes best when spinning counterclockwise.✅ Use this for maximum power and efficiency.
Reverse Thrust:Both can also spin the opposite way to push backwards.⚠️ This works but is weaker and less efficient.

Quick Tip: Always check the label (CW/CCW) to make sure you have the right propeller installed for the direction you want to go. For the strongest push, use forward thrust.

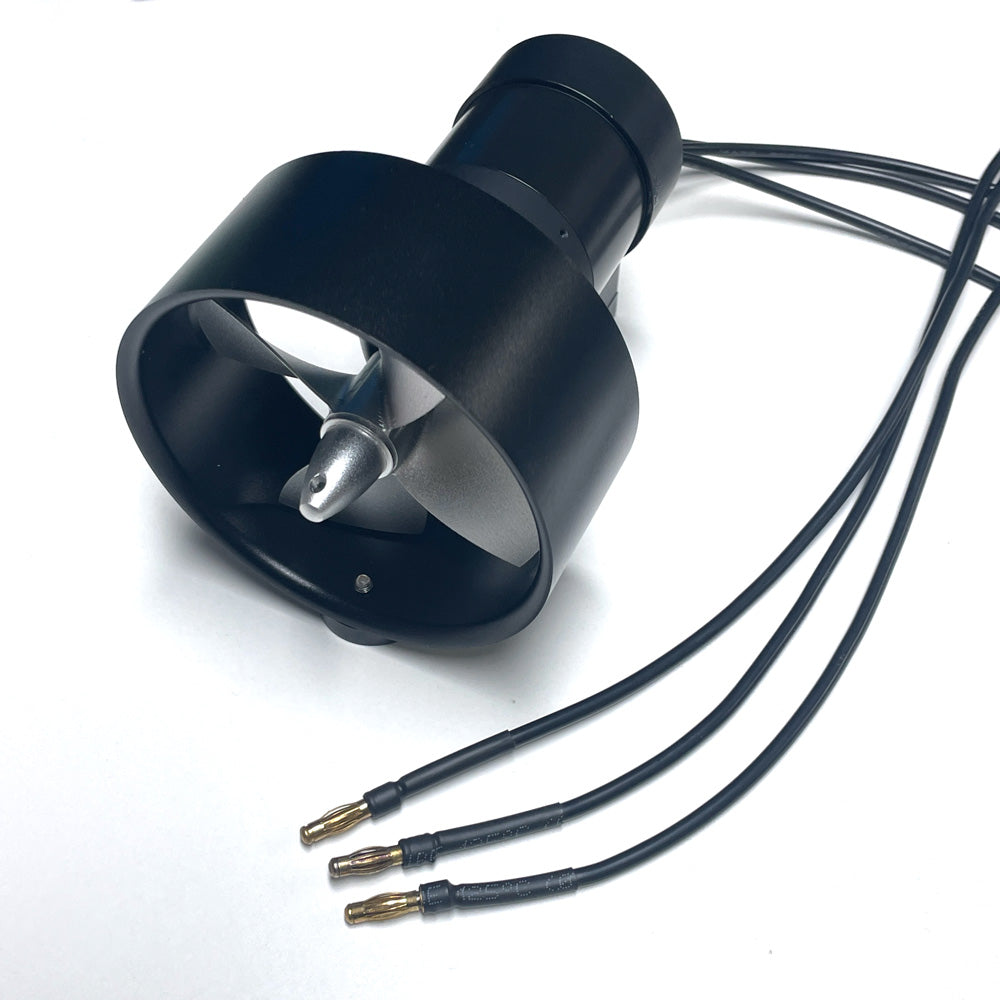

The Thruster: The main unit, which contains a brushless DC motor.

Power Source: A battery pack or power supply.
A Controller: Something to tell it how fast and which way to spin (e.g., a remote control).

How to Connect It:

If your thruster has a built-in ESC:
You can often connect it directly to a standard PWM receiver.
Important Note on Power:
If your receiver or ESC does not have a BEC (Built-in Eliminator Circuit) to power itself, you will need to add a separate BEC module. This provides the necessary power for the electronics.

It's normal for our thrusters to be loud.They use plastic bushings, so small movements between parts can cause sound. This noise is greatly reduced underwater, as water lubricates and cools the system.Never run them dry for more than a few seconds—it can permanently damage the bearings. Every thruster is tested to work properly.
