Underwater Thrusters Matched Remote Controllers and Cables

$159.00 USD

We are the OEM ODM manufacturer. For bulk orders and custom solutions, please contact us at official@hobbywater.com

We prioritize fast order processing. For in-stock items, orders placed before 4:00 PM (Beijing Time) will be shipped the same day. Standard orders typically ship within one week, while customized orders require approximately 15-30 business days for production and delivery. Delivery times may vary under special circumstances.

We ship to most countries worldwide. However, please ensure compliance with your local import regulations.

For the USA: We offer tax-inclusive shipping options. Expedited orders are shipped via DHL, UPS, or FedEx. Note: DHL does not allow undervaluation.
For other countries: Tax-inclusive shipping is available upon request. Otherwise, orders will be shipped via 4PX by default.

For specific shipping requirements, please contact us in advance.

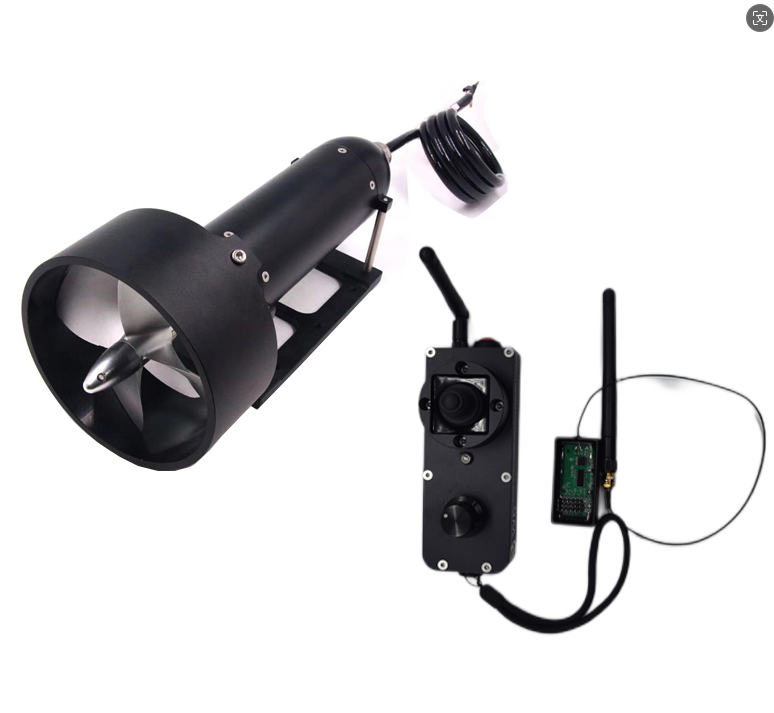

Not only TD30E underwater thruster,the other thrusters can use also.

If you need simple remote,click here.

Not only these two controllers,other wired and wireless controller in our store all can match.

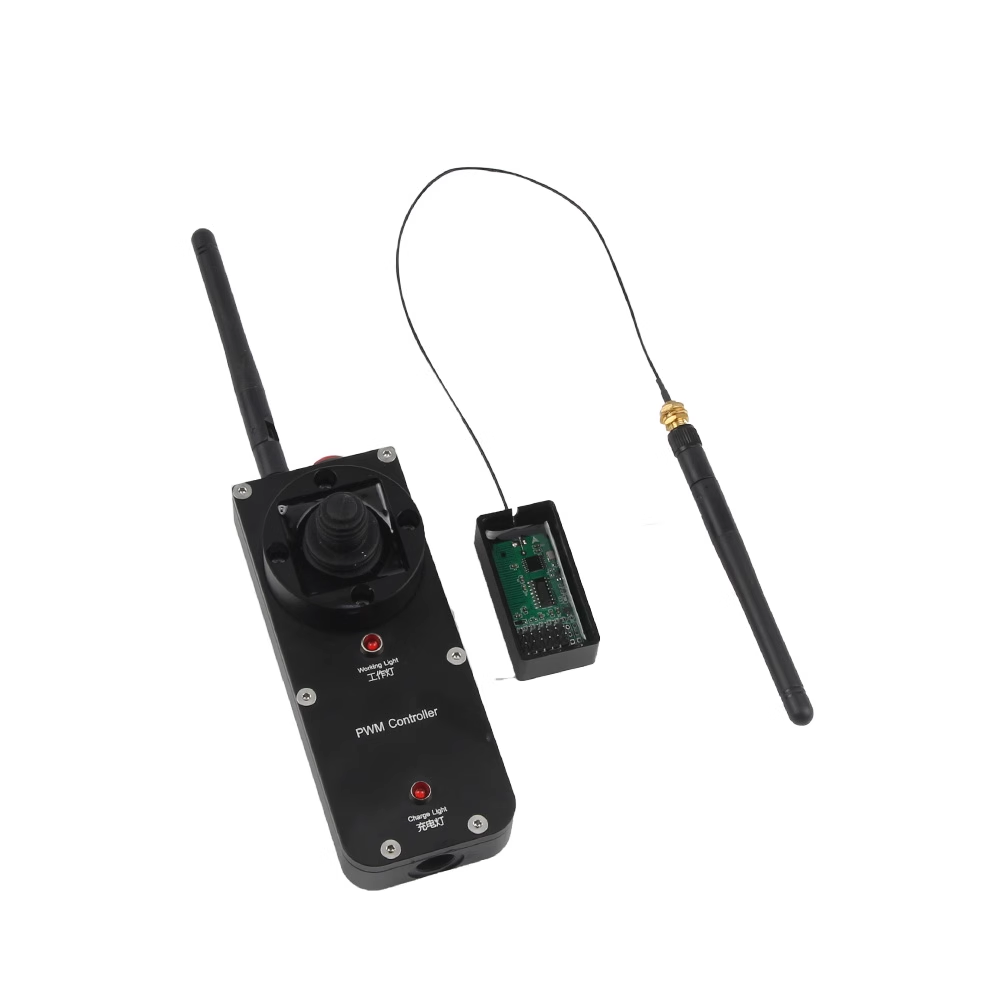

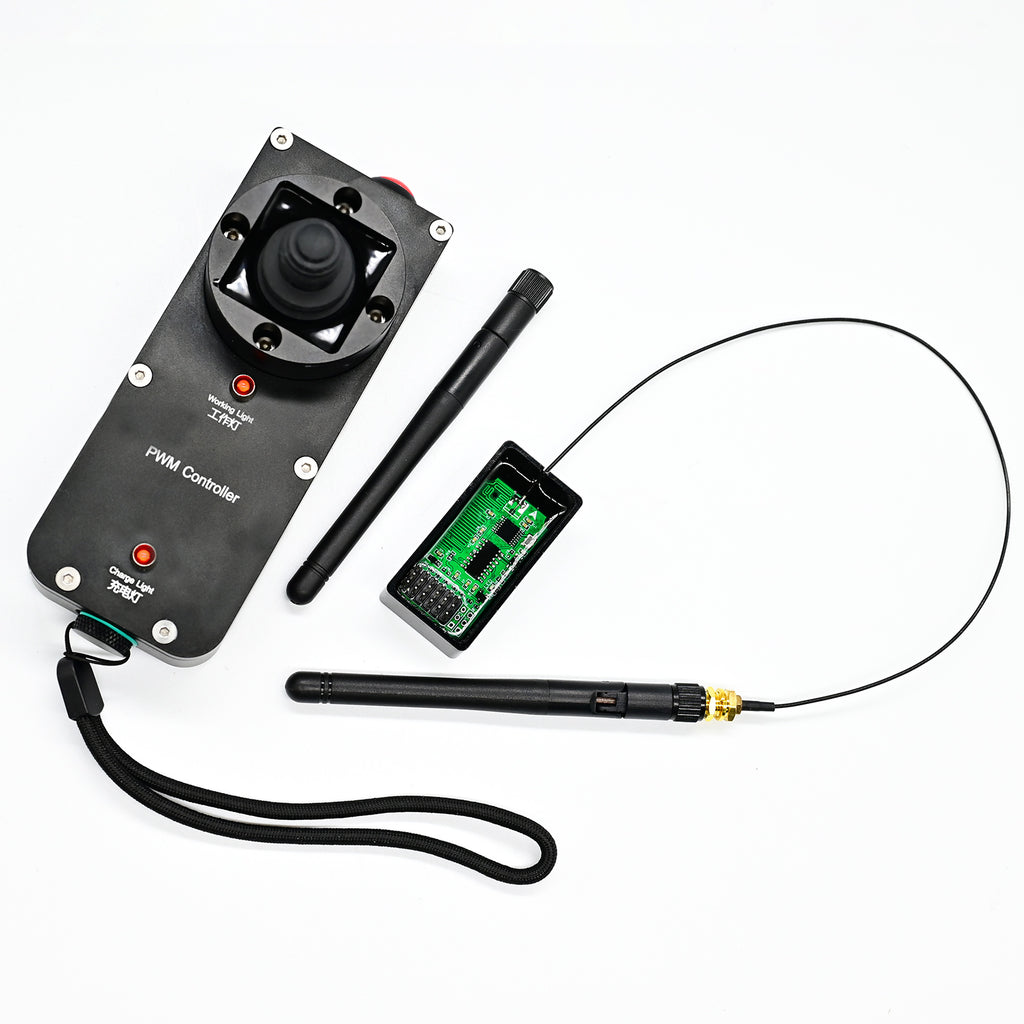

Remote-1 Parameters

Shell Design:

Material: 6061 aerospace aluminum

Processing: CNC machined, anodized

Features: Durable, wear-resistant, corrosion-resistant

Antenna Design:

Feature: Extended antennas

Purpose: Increased control distance

Control Range:

Land: 580 meters (open land)

Water: 300 meters (depending on environment and wave size)

Charging Design:

Battery: Built-in

Charging Port: Type-C with waterproof cover

Charging Time: 2.5 hours

Indicator: Light turns off when fully charged

Weight: 727g

Wiring Definition:

Channel 1 and 2:

- Mode: Mixed control
- Compatible: Dual-motor differential steering
- ESC Compatibility:
  - Bidirectional ESC: Supports forward, reverse, and turning
  - Unidirectional ESC: Does not support reverse

Waterproof-remote1

Waterproof Remote-2

Explosion-Proof

Why need Ycable?

a Y cable can be used to control two thrusters simultaneously. By splitting the signal from one receiver channel, the Y cable allows you to connect and control both thrusters at the same time using the same input. This setup ensures that both thrusters respond to the same commands, such as throttle or direction, making it ideal for applications where synchronized operation is needed.

1. For Your Safety:

Keep Clear: Never put hands, feet, or anything near the propeller when it's plugged in. It can spin without warning and cause injury.
No Water, No Power: Do not run the thruster in air for more than 10 seconds. It needs water to cool itself or it will break.

2. For The Thruster's Safety:

Check Seals: Always check that the rubber O-rings are clean, greased, and undamaged before putting it in water.
Avoid Debris: Keep it away from weeds, sand, and plastic bags. These can jam and break the propeller.
No Regular Glue: Do not use normal threadlocker (screw glue) on any screws. It will crack the plastic body. Only use a kind that is safe for polycarbonate.

3. Simple Rules:

Test First: Always test in a bucket or pool before going to open water.
Rinse After Use: Always rinse with fresh water after use, especially in saltwater.
Store Safely: Keep it in a case to protect it from bumps and dust.

1. Two Propeller Types:

You get two propellers: one labeled "CW" (spins clockwise) and one labeled "CCW" (spins counterclockwise).

2. How Thrust Works:

Forward Thrust (Recommended):A CW propeller pushes best when spinning clockwise.A CCW propeller pushes best when spinning counterclockwise.✅ Use this for maximum power and efficiency.
Reverse Thrust:Both can also spin the opposite way to push backwards.⚠️ This works but is weaker and less efficient.

Quick Tip: Always check the label (CW/CCW) to make sure you have the right propeller installed for the direction you want to go. For the strongest push, use forward thrust.

The Thruster: The main unit, which contains a brushless DC motor.

Power Source: A battery pack or power supply.
A Controller: Something to tell it how fast and which way to spin (e.g., a remote control).

How to Connect It:

If your thruster has a built-in ESC:
You can often connect it directly to a standard PWM receiver.
Important Note on Power:
If your receiver or ESC does not have a BEC (Built-in Eliminator Circuit) to power itself, you will need to add a separate BEC module. This provides the necessary power for the electronics.

It's normal for our thrusters to be loud.They use plastic bushings, so small movements between parts can cause sound. This noise is greatly reduced underwater, as water lubricates and cools the system.Never run them dry for more than a few seconds—it can permanently damage the bearings. Every thruster is tested to work properly.
