6inch(152mm) heavyduty industrial mecanum wheel Omni wheel load 300KG set of 4 (NM152A)

Mecanum Wheels Set - Omnidirectional Movement

Precision Engineering for Heavy-Duty Applications!

Key Features

• 🌀 Full Omnidirectional Movement: 45° roller axes enable multi-directional travel

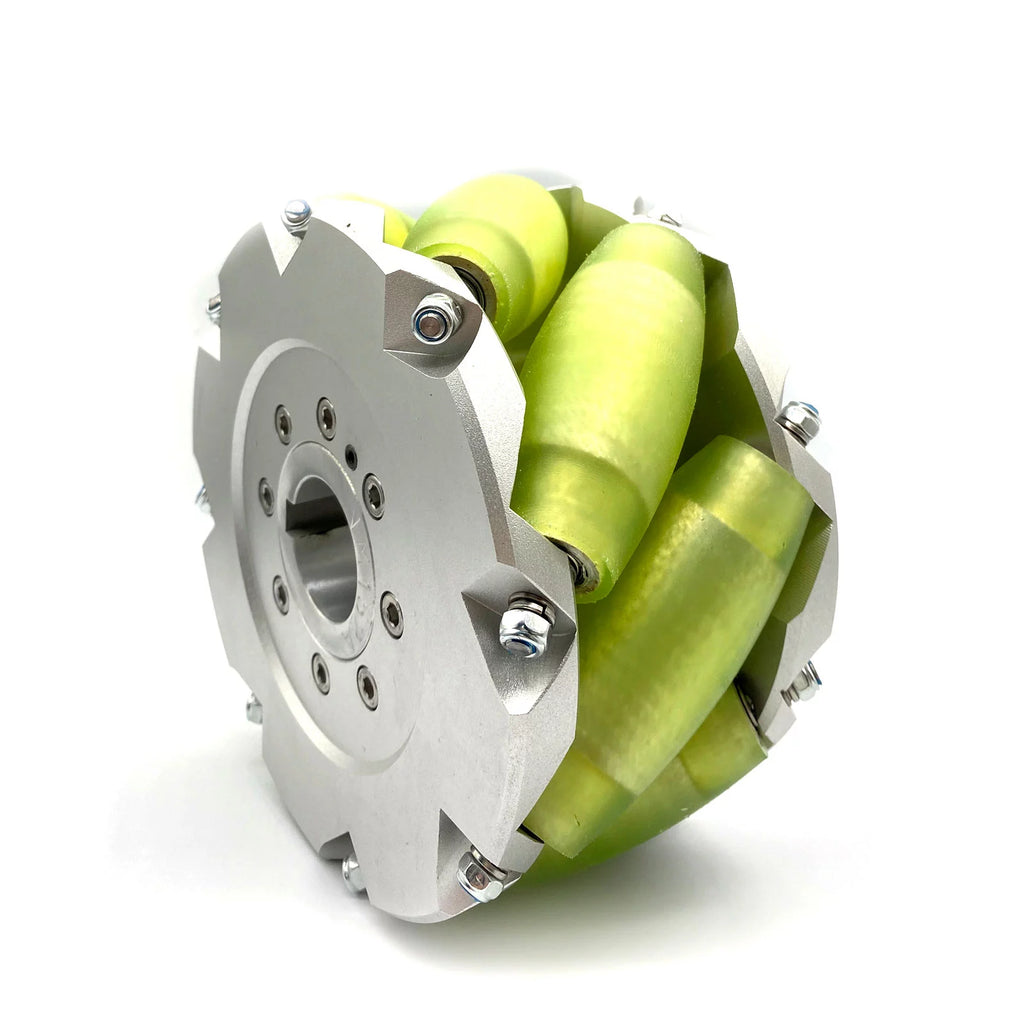

• 🏗️ Heavy-Duty Build: Aluminum alloy body + polyurethane rollers

• ⚙️ High Load Capacity: Supports up to 300kg per set

• 🧩 Pre-Assembled Units: Sold as mounted wheel sets (2L + 2R)

• 🏭 Industrial Grade: Ideal for logistics, AGVs, and automation

Technical Specifications

• Diameter: 152mm (6 inches)

• Width: 80mm

• Rollers: 8 per wheel (polyurethane)

• Weight: 2.6kg per wheel

• Load Capacity: 300kg per set

• Body Material: Aluminum alloy

• Roller Length: 77mm

How It Works

• Each roller rotates at 45° to the wheel axis

• Independent wheel control creates vector-based movement

• Move forward, backward, sideways, or rotate without steering

Applications

• Automated Guided Vehicles (AGVs)

• Material handling systems

• Elevating transfer boards

• Logistics and storage automation

• Industrial robotics

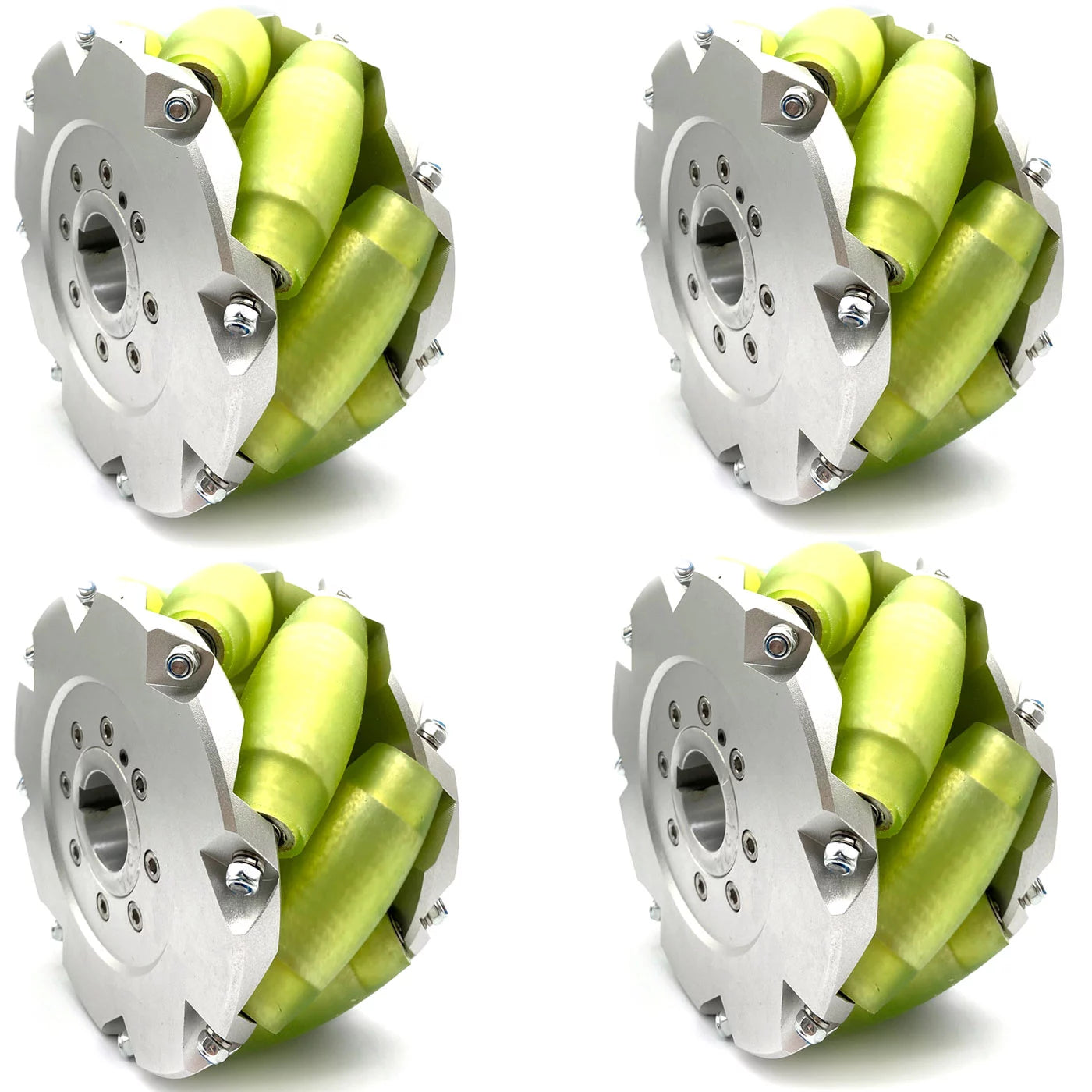

Package Includes

• 2 × NM152AL (Left-handed wheels)

• 2 × NM152AR (Right-handed wheels)
