ZTW MOSFET Technology IP67 Dual Operation 70A-300A HV Programmable ESC

ZTW MOSFET Technology IP67 Dual Operation 70A-300A HV Programmable ESC

Style
$69.99 USD
Customization Service

We are the OEM ODM manufacturer. For bulk orders and custom solutions, please contact us at official@hobbywater.com
When will I get my order?

We prioritize fast order processing. For in-stock items, orders placed before 4:00 PM (Beijing Time) will be shipped the same day. Standard orders typically ship within one week, while customized orders require approximately 15-30 business days for production and delivery. Delivery times may vary under special circumstances.
Shipping Methods

We ship to most countries worldwide. However, please ensure compliance with your local import regulations.

  • For the USA: We offer tax-inclusive shipping options. Expedited orders are shipped via DHL, UPS, or FedEx. Note: DHL does not allow undervaluation.
  • For other countries: Tax-inclusive shipping is available upon request. Otherwise, orders will be shipped via 4PX by default.

For specific shipping requirements, please contact us in advance.

Key Features of Waterproof ESC

Advanced MOSFET Technology: Features low heat generation, high current endurance, and excellent reliability.

High-Performance Microprocessor: Equipped with a 32-bit microprocessor operating at 170MHz for enhanced performance and speed.

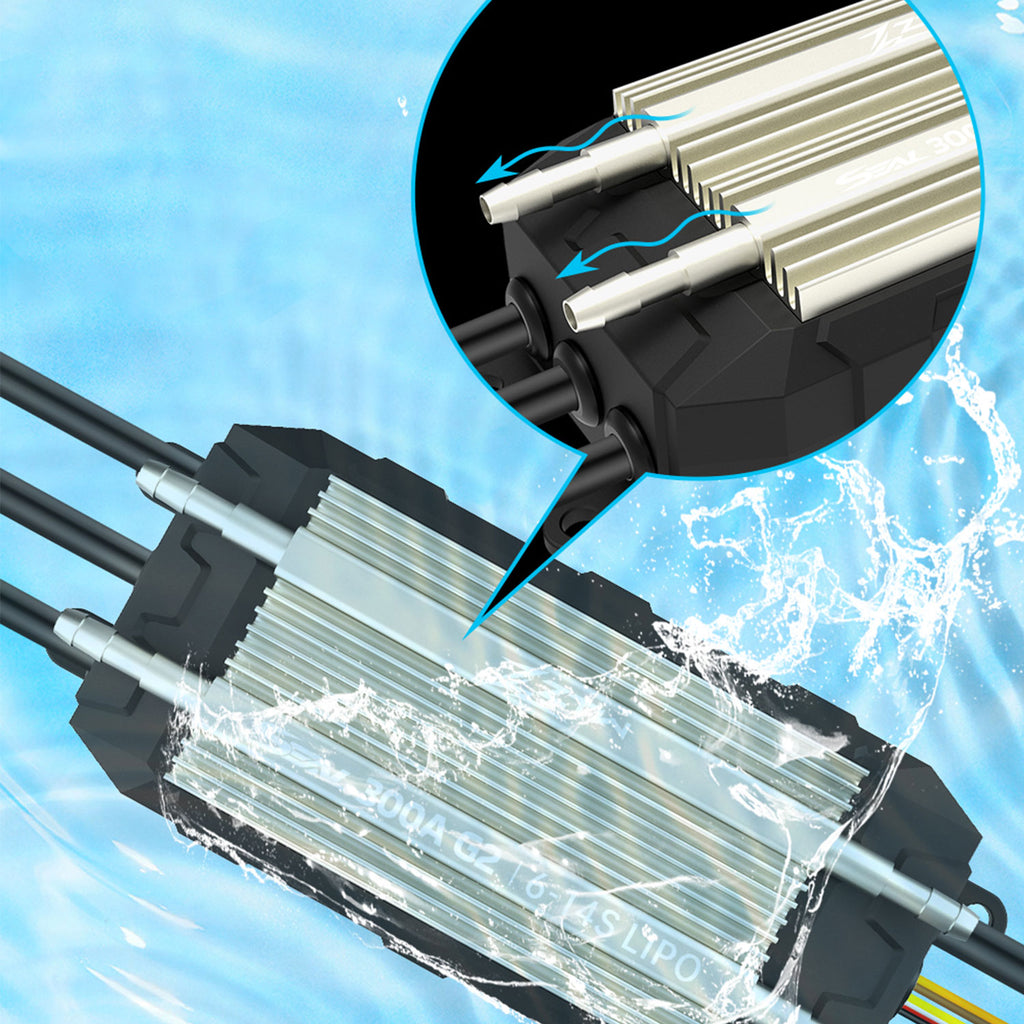

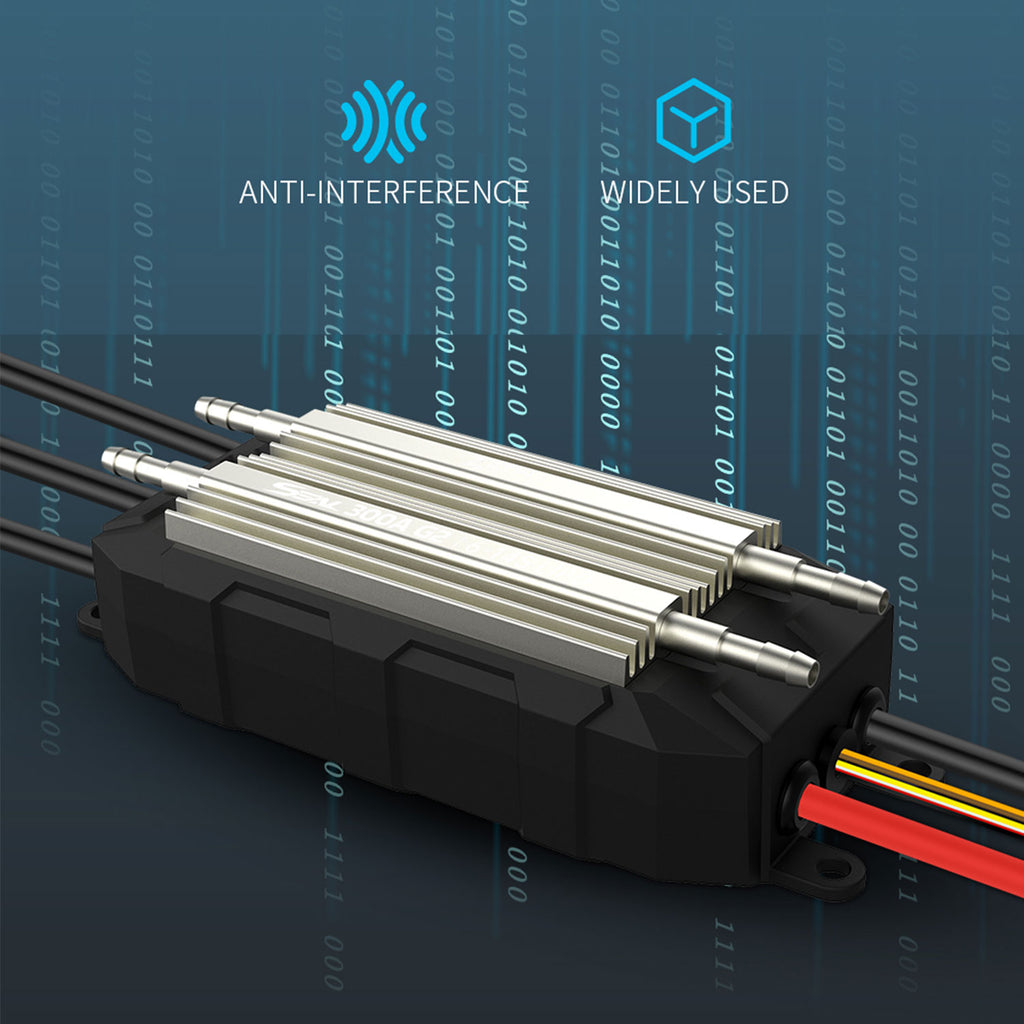

Waterproof Design: Rated IP67, suitable for humid environments, and includes a metal water cooling heat sink for efficient heat dissipation.

Smooth and Precise Control: Ultra-smooth startup and accurate throttle linearity, ideal for various RC boat models, electric surfboards, and underwater applications.

Dual Operation Modes: Offers "Forward Only" and "Forward and Reverse" modes.

Energy Efficiency: Features an idle function for higher driving efficiency and energy savings.

Compatibility: Supports high-speed motors and is compatible with most motors on the market.

Comprehensive Protections: Includes start-up, overheating, low voltage cut-off, signal loss, phase loss, overcurrent, abnormal power-on voltage, and overload protections.

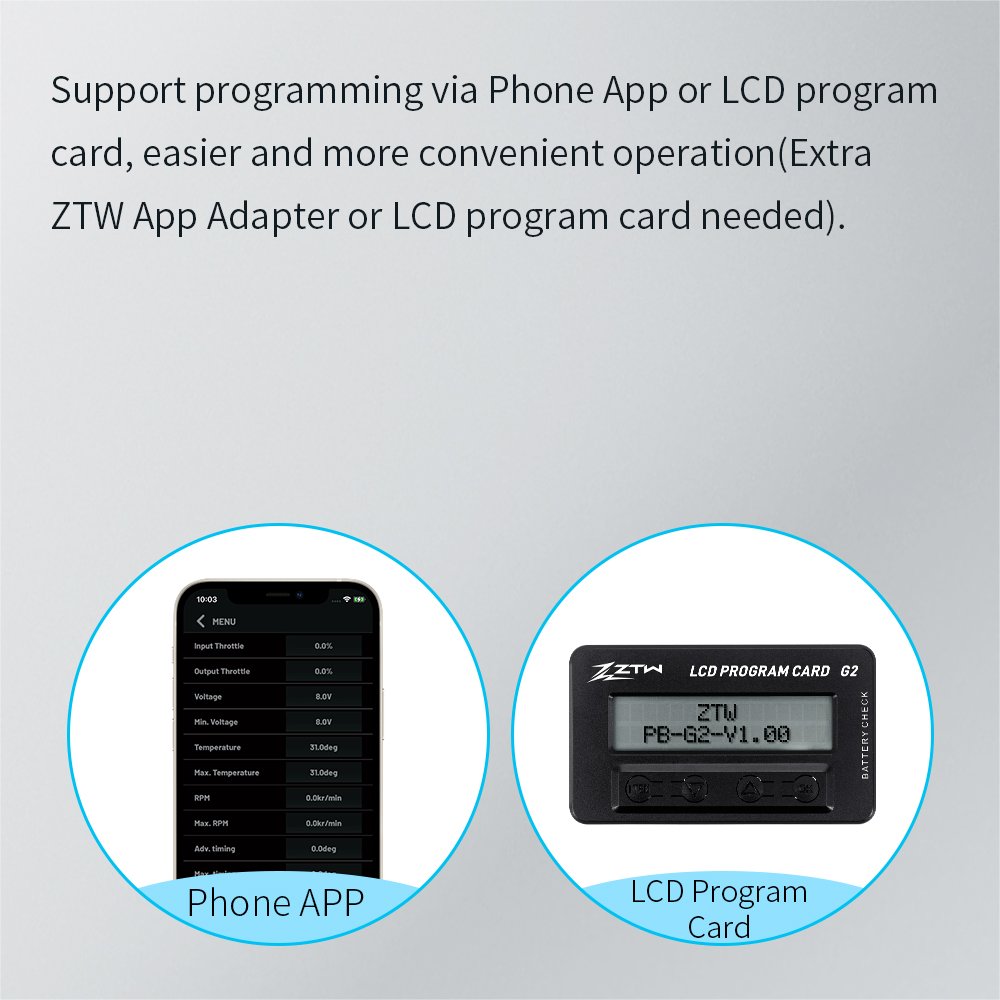

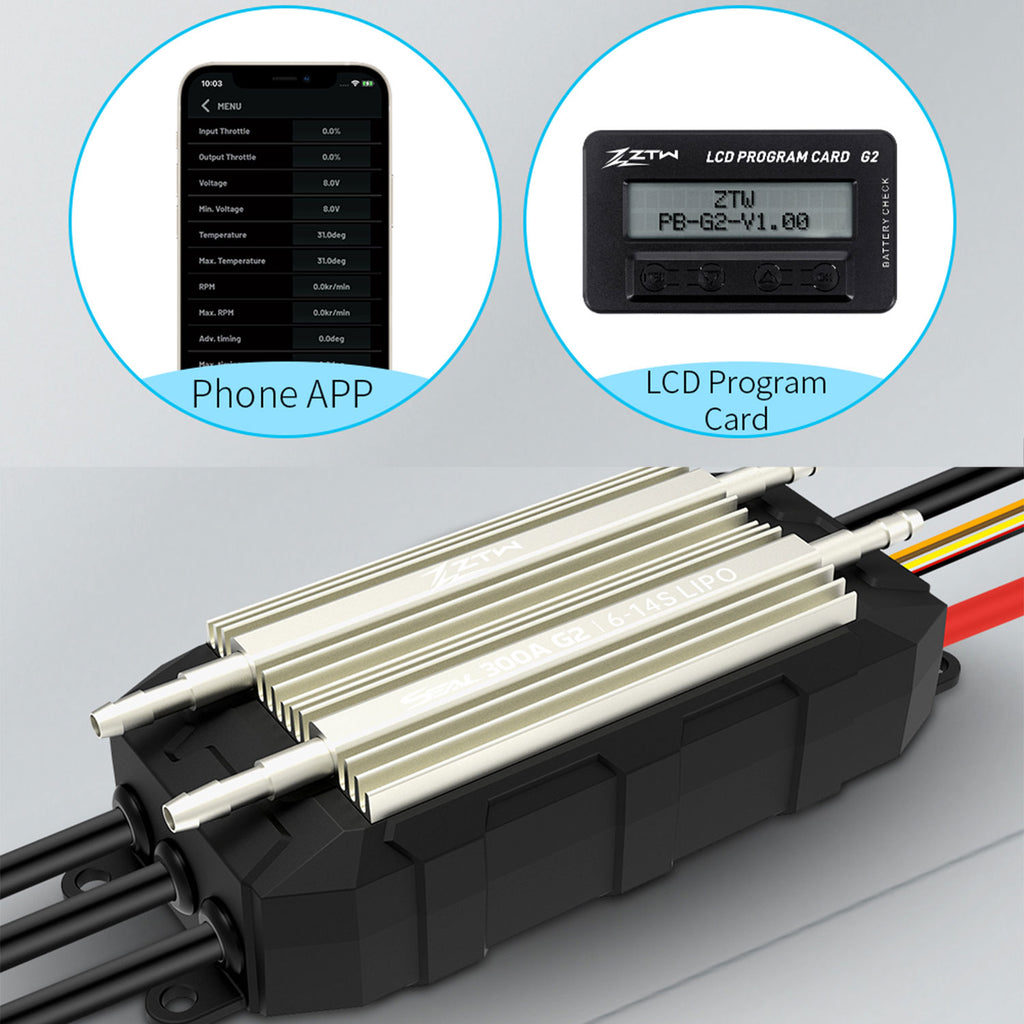

Easy Programming: Supports programming via cell phone App or LCD program card, with additional ZTW App adapter or LCD program box G2 required for use.

Data Communication: Compatible with Futaba remote control (S.BUS2 protocol) for specific models (130A HV, 160A HV, 300A HV 6-14S ESCs).

Real-Time Data Return: Supports CAN protocol and provides real-time data on current, voltage, temperature, speed, throttle, and ESC status.

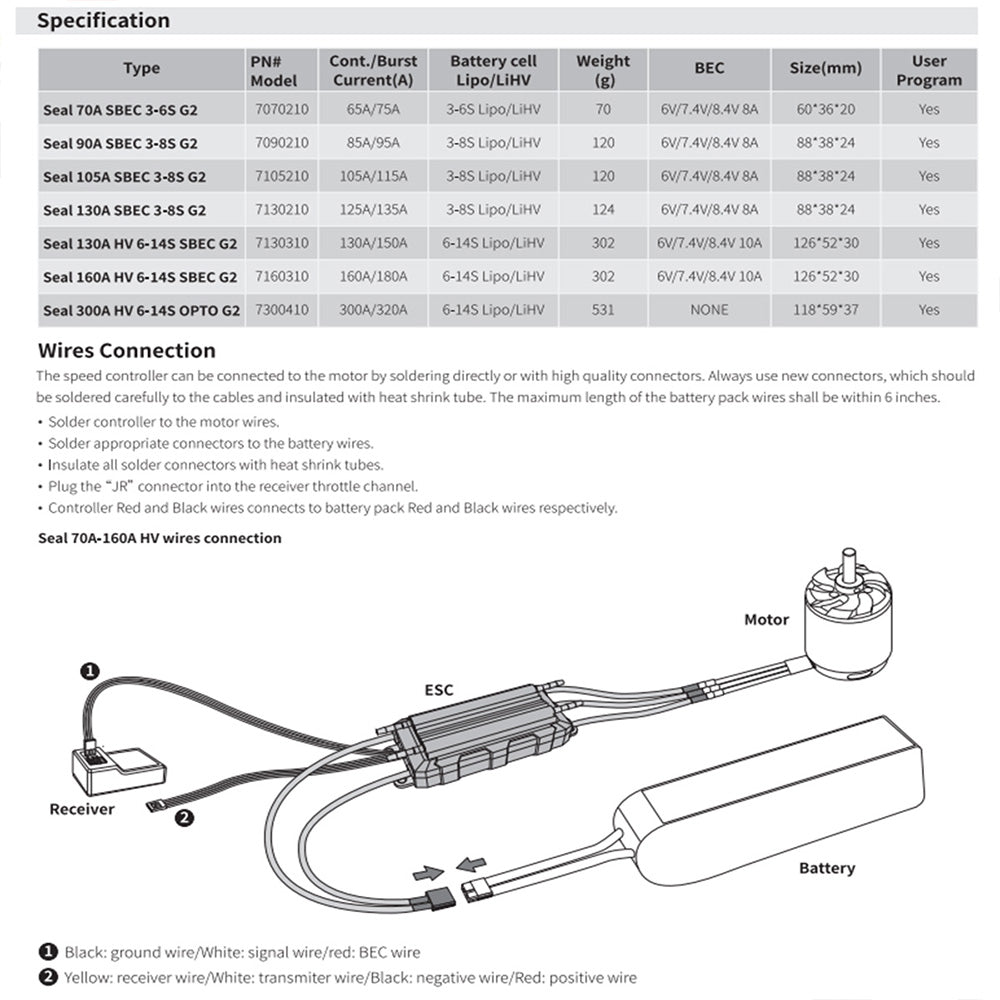

ZTW  High Voltage Brushless ESC, 6-14S, XT60 Plug, Bi-Directional Control, IP67 Waterproof for Model Boats, RC Boats, Surfboards, Hydrofoils

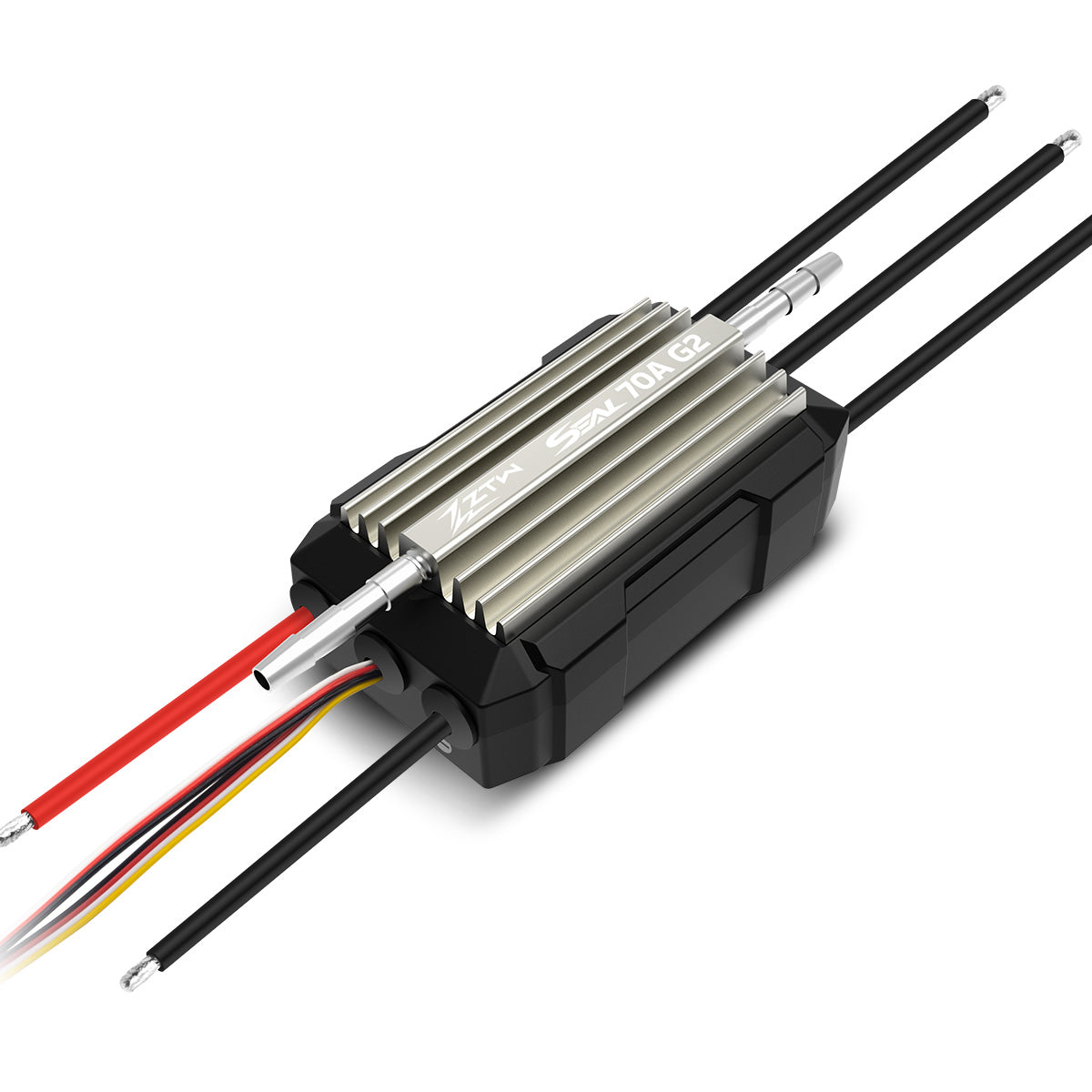

Seal 70A SBEC G2 (7070210)

Power Cable Specifications: 14# 80mm (Red*1/Black*1)

Motor Cable Specifications: 14# 65mm (Black*3)

Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4 Ordinary JR Head

Connector: XT60

Ground Wire (optional): 3.5

Continuous Output Current: 70A

Peak Output Current: 80A

Battery Cells: 2-6S Lipo

BEC Output: 6V/7.4V/8.4V adjustable / 8A

Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP

Software Upgradeable: Yes

Waterproof: Yes

ESC Dimensions: 60*36*20mm

ESC Weight: 70g

Seal 90A SBEC G2 (7090210)

Power Cable Specifications: 12# 80mm (Red*1/Black*1)

Motor Cable Specifications: 12# 65mm (Black*3)

Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4 Ordinary JR Head

Connector: XT60

Ground Wire (optional): 4.0

Continuous Output Current: 85A

Peak Output Current: 95A

Battery Cells: 3-8S Lipo

BEC Output: 6V/7.4V/8.4V adjustable / 8A

Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP

Software Upgradeable: Yes

Waterproof: Yes

ESC Dimensions: 88*38*24mm

ESC Weight: 120g

Seal 105A SBEC G2 (7105210)

Power Cable Specifications: 12# 80mm (Red*1/Black*1)

Motor Cable Specifications: 12# 65mm (Black*3)

Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4 Ordinary JR Head

Connector: XT60

Ground Wire (optional): 4.0

Continuous Output Current: 105A

Peak Output Current: 115A

Battery Cells: 3-8S Lipo

BEC Output: 6V/7.4V/8.4V adjustable / 8A

Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP

Software Upgradeable: Yes

Waterproof: Yes

ESC Dimensions: 88*38*24mm

ESC Weight: 120g

Seal 130A SBEC G2 (7130210)

Power Cable Specifications: 10# 160mm (Red*1/Black*1)

Motor Cable Specifications: 10# 65mm (Black*3)

Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4P Ordinary JR Head

Connector: XT60

Ground Wire (optional): 4.0

Continuous Output Current: 125A

Peak Output Current: 135A

Battery Cells: 3-8S Lipo

BEC Output: 6V/7.4V/8.4V adjustable / 8A

Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP

Software Upgradeable: Yes

Waterproof: Yes

ESC Dimensions: 88*38*24mm

ESC Weight: 124g

Seal 130A HV SBEC G2 (7130410)

Power Cable Specifications: 10# 160mm (Black*2)

Motor Cable Specifications: 10# 160mm (Black*3)

Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4P

Connector: XT60

Ground Wire (optional): 5.5

Continuous Output Current: 130A

Peak Output Current: 150A

Battery Cells: 6-14S Lipo

BEC Output: 6V/7.4V/8.4V adjustable / 10A

Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP

Software Upgradeable: Yes

Waterproof: Yes

ESC Dimensions: 126*52*30mm

ESC Weight: 302g

Seal 160A HV SBEC G2 (7160410)

Power Cable Specifications: 10# 160mm (Black*2)

Motor Cable Specifications: 10# 160mm (Black*3)

Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4P

Connector: XT60

Ground Wire (optional): 5.5

Continuous Output Current: 160A

Peak Output Current: 180A

Battery Cells: 6-14S Lipo

BEC Output: 6V/7.4V/8.4V adjustable / 10A

Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP

Software Upgradeable: Yes

Waterproof: Yes

ESC Dimensions: 126*52*30mm

ESC Weight: 302g

Seal 300A HV OPTO G2 (7300410)

Power Cable Specifications: 8# 160mm (Red*1/Black*1)

Motor Cable Specifications: 8# 160mm (Black*3)

Signal Cable Specifications: 60C 330mm Black/Red/White/Yellow 4P

Connector: /

Ground Wire: /

Continuous Output Current: 300A

Peak Output Current: 320A

Battery Cells: 6-14S Lipo

BEC Output: None

Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP

Software Upgradeable: Yes

Waterproof: Yes

ESC Dimensions: 118*59*37mm

ESC Weight: 531g

PROGRAM BOX
Thruster Safety: Quick Guide

1. For Your Safety:

  • Keep Clear: Never put hands, feet, or anything near the propeller when it's plugged in. It can spin without warning and cause injury.
  • No Water, No Power: Do not run the thruster in air for more than 10 seconds. It needs water to cool itself or it will break.

2. For The Thruster's Safety:

  • Check Seals: Always check that the rubber O-rings are clean, greased, and undamaged before putting it in water.
  • Avoid Debris: Keep it away from weeds, sand, and plastic bags. These can jam and break the propeller.
  • No Regular Glue: Do not use normal threadlocker (screw glue) on any screws. It will crack the plastic body. Only use a kind that is safe for polycarbonate.

3. Simple Rules:

  • Test First: Always test in a bucket or pool before going to open water.
  • Rinse After Use: Always rinse with fresh water after use, especially in saltwater.
  • Store Safely: Keep it in a case to protect it from bumps and dust.
Thruster Propeller Guide

1. Two Propeller Types:

  • You get two propellers: one labeled "CW" (spins clockwise) and one labeled "CCW" (spins counterclockwise).

2. How Thrust Works:

  • Forward Thrust (Recommended):A CW propeller pushes best when spinning clockwise.A CCW propeller pushes best when spinning counterclockwise.✅ Use this for maximum power and efficiency.
  • Reverse Thrust:Both can also spin the opposite way to push backwards.⚠️ This works but is weaker and less efficient.

Quick Tip: Always check the label (CW/CCW) to make sure you have the right propeller installed for the direction you want to go. For the strongest push, use forward thrust.
What You Need to Run a Thruster？

The Thruster: The main unit, which contains a brushless DC motor.

  1. Power Source: A battery pack or power supply.
  2. A Controller: Something to tell it how fast and which way to spin (e.g., a remote control).

How to Connect It:

  • If your thruster has a built-in ESC:
    You can often connect it directly to a standard PWM receiver.
  • Important Note on Power:
    If your receiver or ESC does not have a BEC (Built-in Eliminator Circuit) to power itself, you will need to add a separate BEC module. This provides the necessary power for the electronics.
Thruster making strange sound,broken?

It's normal for our thrusters to be loud.They use plastic bushings, so small movements between parts can cause sound. This noise is greatly reduced underwater, as water lubricates and cools the system.Never run them dry for more than a few seconds—it can permanently damage the bearings. Every thruster is tested to work properly.
