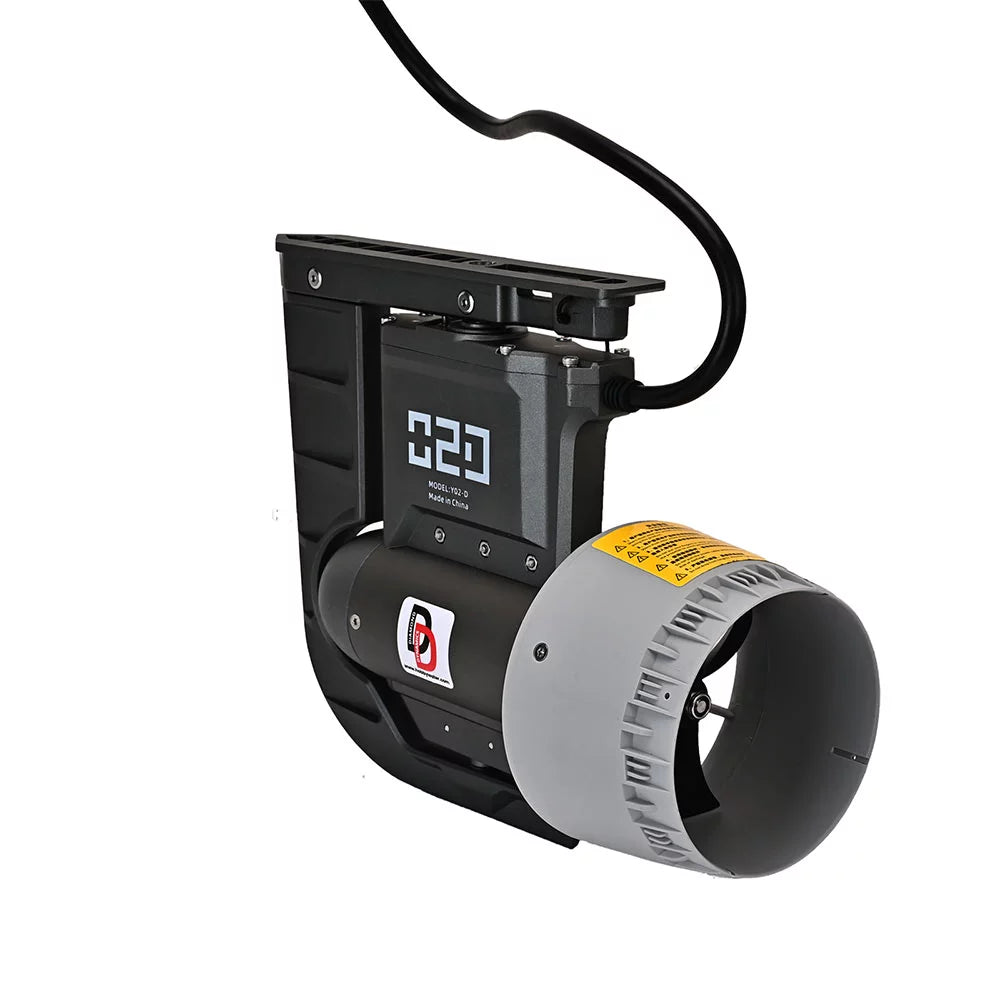

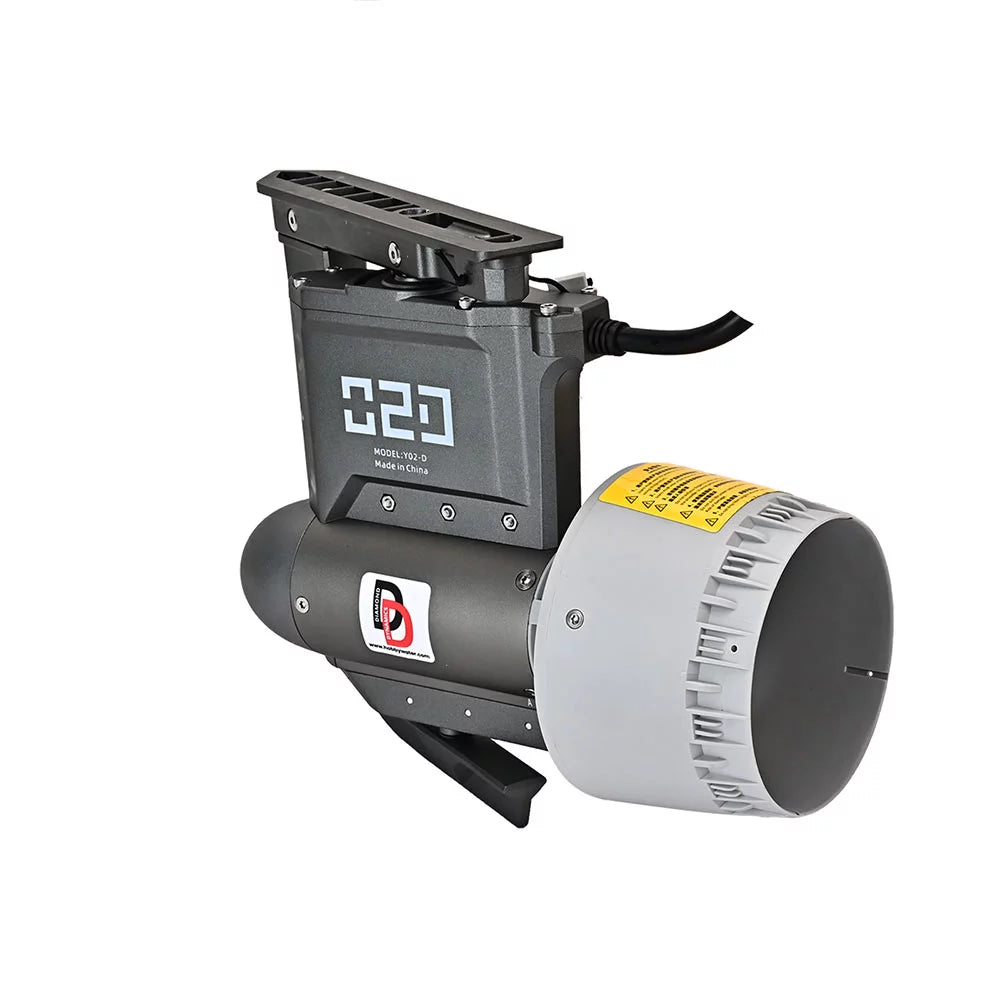

TD-Y02D Servo Steering Thruster 35° Turn 11.5kgf Thrust for SUP/Kayak
$389.00 USD
Customization Service
We are the OEM ODM manufacturer. For bulk orders and custom solutions, please contact us at official@hobbywater.com
When will I get my order?
We prioritize fast order processing. For in-stock items, orders placed before 4:00 PM (Beijing Time) will be shipped the same day. Standard orders typically ship within one week, while customized orders require approximately 15-30 business days for production and delivery. Delivery times may vary under special circumstances.
Shipping Methods
We ship to most countries worldwide. However, please ensure compliance with your local import regulations.
- For the USA: We offer tax-inclusive shipping options. Expedited orders are shipped via DHL, UPS, or FedEx. Note: DHL does not allow undervaluation.
- For other countries: Tax-inclusive shipping is available upon request. Otherwise, orders will be shipped via 4PX by default.
For specific shipping requirements, please contact us in advance.
| Parameter | Specification |
|---|---|
| Product Name | TD-Y02D Servo Steering Electric Thruster |
| Steering System | Servo-controlled, ±35° left / ±35° right (70° total) |
| Max Thrust | 11.5kgf |
| Motor Power | 500W (rated) |
| Motor Speed | 3000 r/min |
| Top Speed | 9km/h (with 100kg load) |
| Weight (without battery) | 2kg |

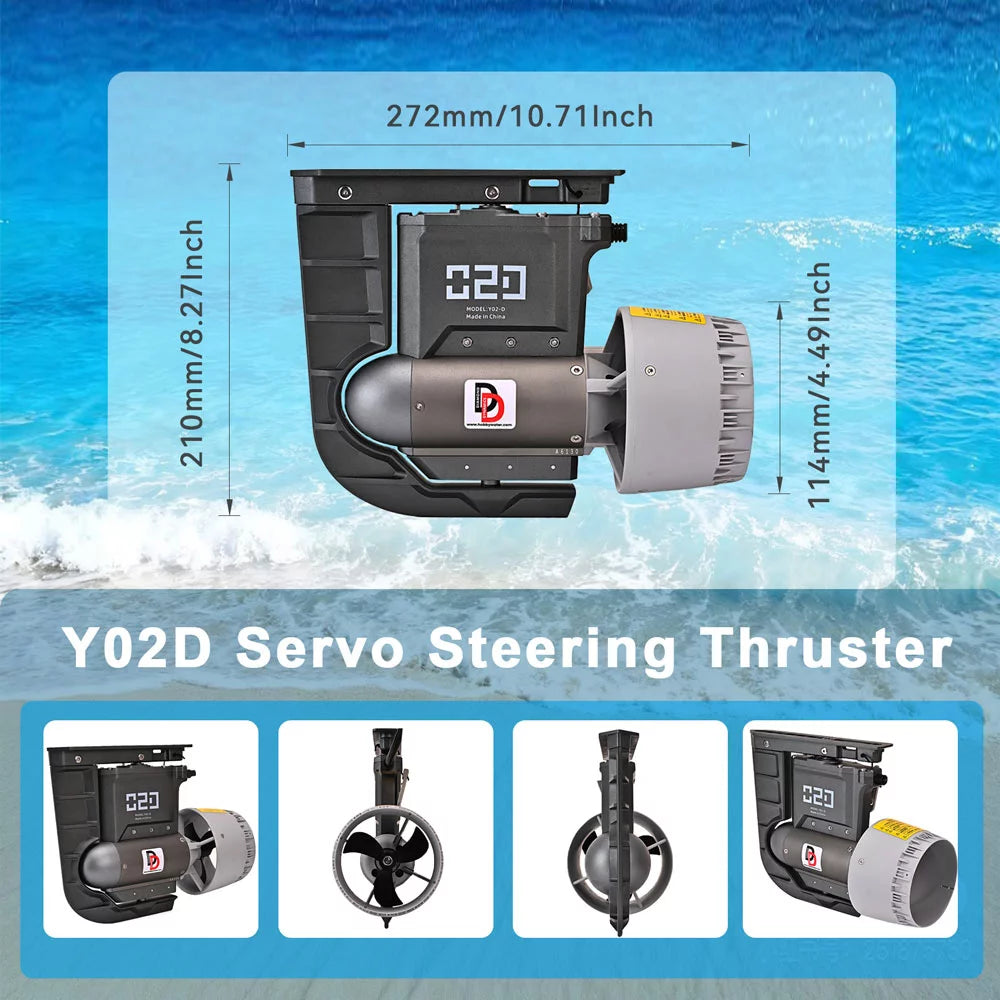

| Dimensions | 272 × 210 × 114mm |
| Operating Temp. | 0–40°C |
| Storage Temp. | 0–40°C |
Battery Options:
| Model | Type | Capacity | Voltage | Weight | Charge Time | Runtime (9km/h) | Range |
|---|---|---|---|---|---|---|---|
| B1 | Li-ion | 36Ah / 799.2Wh | 22.2V | 4.95kg | ~8h | 100 min | 14.9 km |
| B2 | LiFePO₄ | 15Ah / 336Wh | 22.4V | 2.73kg | ~4h | 45 min | 6.75 km |
| B3 | LiFePO₄ | 30Ah / 672Wh | 22.4V | 5.5kg | ~7h | 90 min | 13.5 km |
| B75S | LiFePO₄ | 75Ah / 1920Wh | 25.6V | 13.8kg | ~10h | 270 min | 40.5 km |
Tested at 20°C in static freshwater with 100kg paddleboard load.
Charger:
| Battery | Input | Output | Power | Indicator |
|---|---|---|---|---|
| B1/B2/B3 | AC 100-240V | DC 25.2V | C1:120W / C2:75W | Red=charging, Green=full |
| B75S | AC 100-240V | DC 28.8V | 230W | Red=charging, Green=full |
Remote Controller:
| Feature | Description |
|---|---|
| Modes | Mode 1: Servo steering / Mode 2: Dual-thruster differential control |
| Cruise Control | Yes, with incremental speed adjustment |
| Key Lock | Yes (auto-locks after 5min) |
| Signal Indicator | 4-level signal strength |
| Charging | Magnetic USB (floats on water, do not submerge) |
Receiver:
| Port/Function | Description |
|---|---|
| Output Port | Connects to thruster |
| Power Port | Connects to battery |
| Emergency Switch | Overrides remote, cycles Slow→Medium→Fast (no reverse) |
| LED Indicator | Blue=connected / Purple=binding mode |

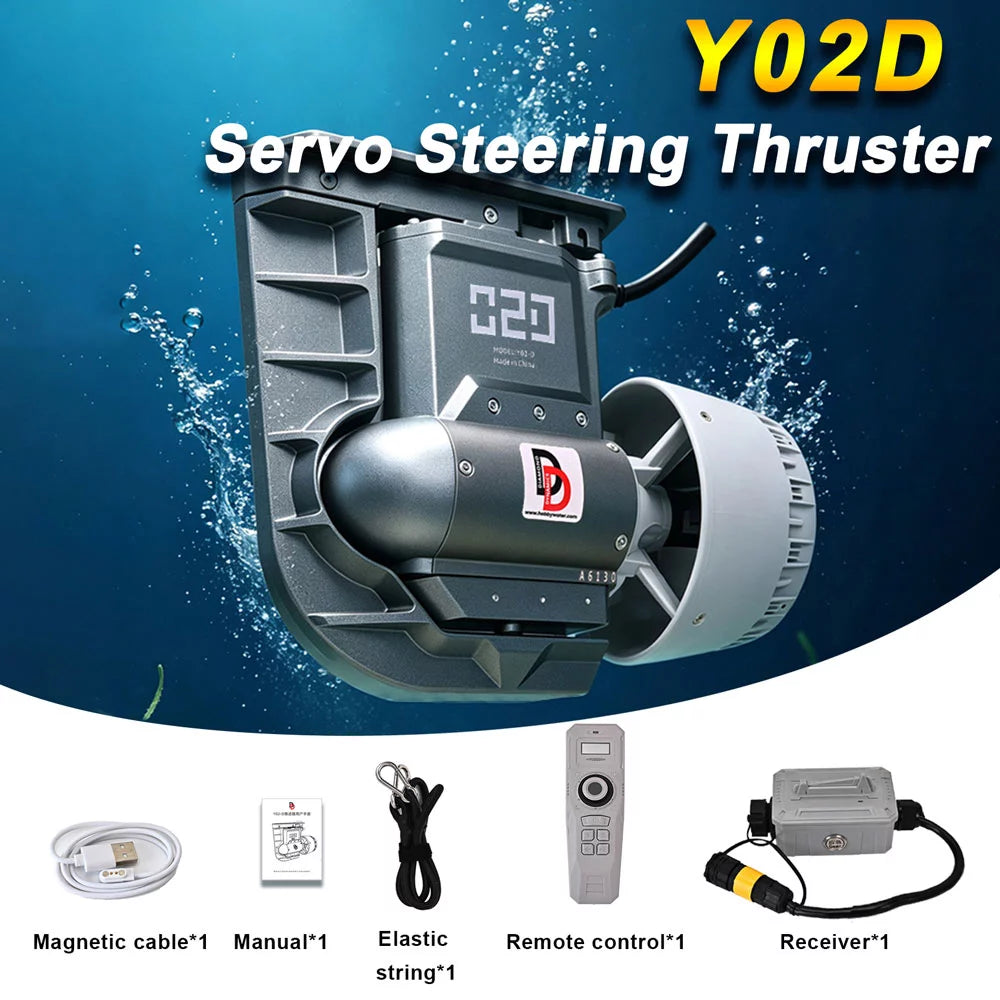

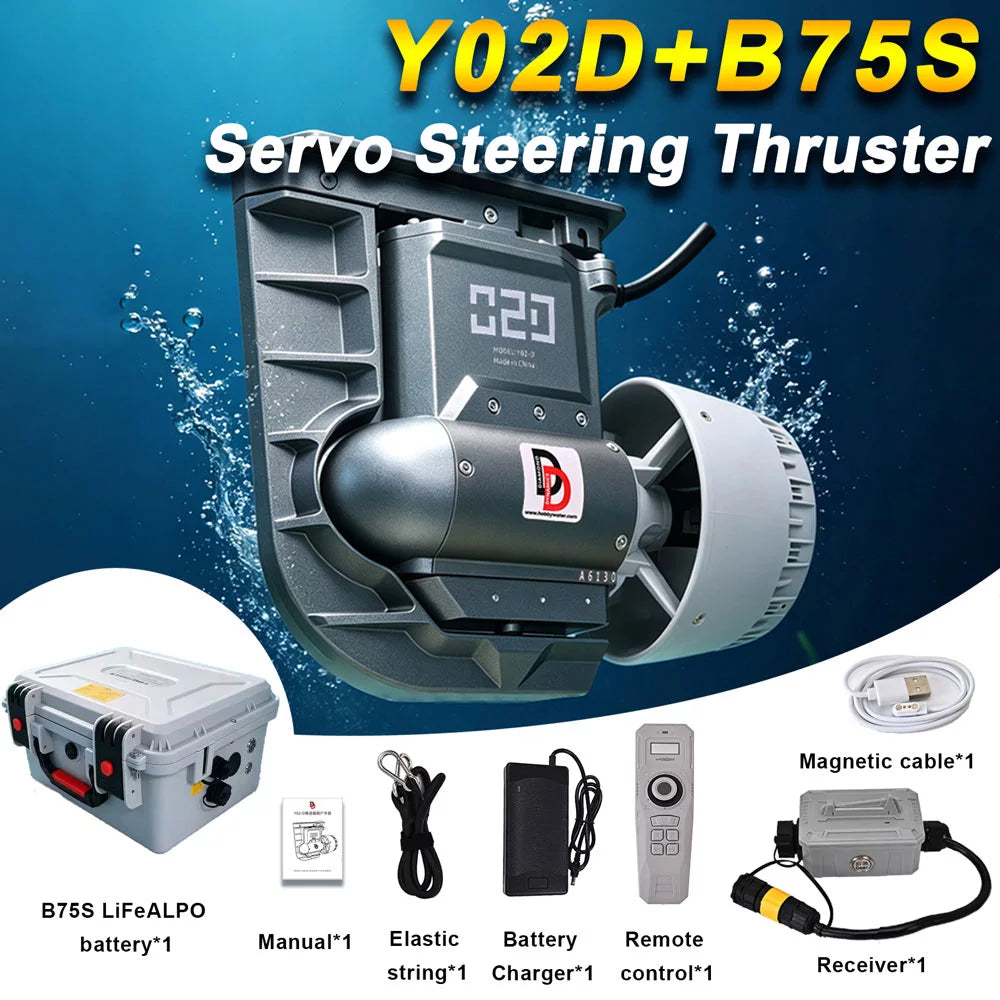

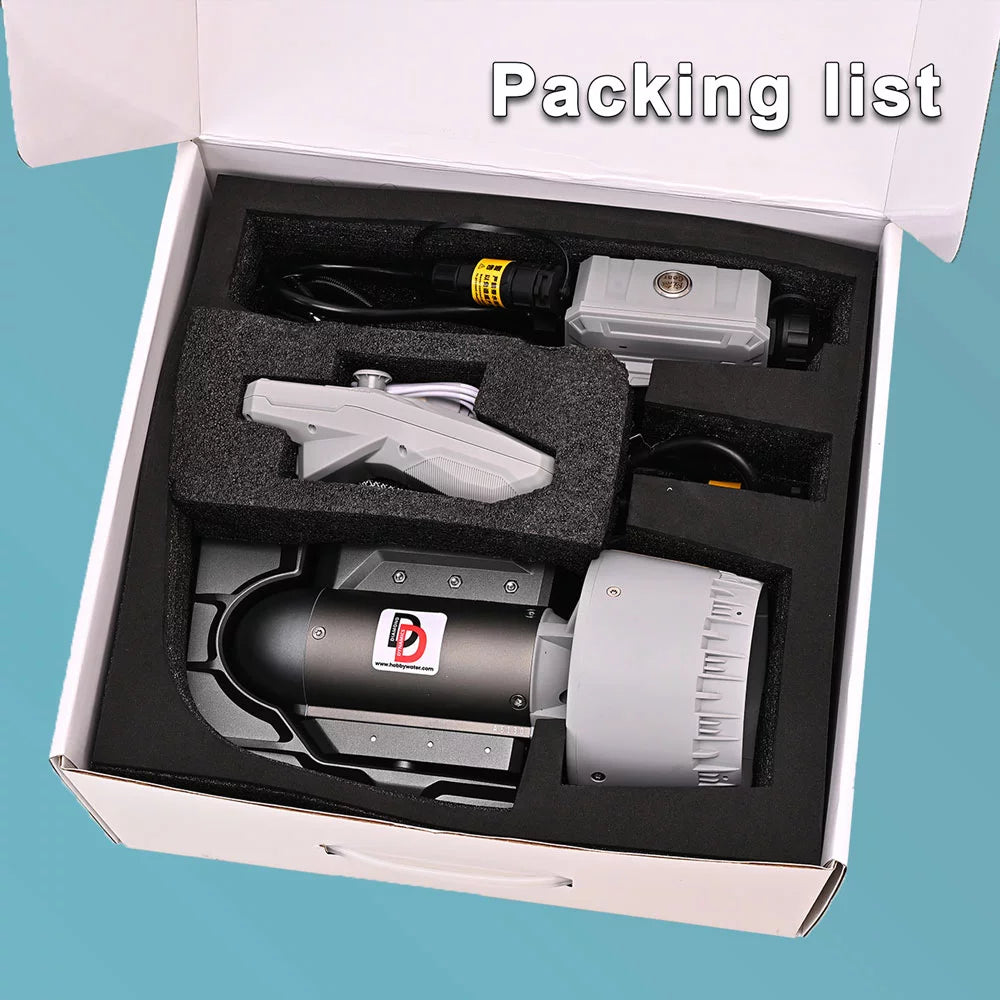

Package Includes: Thruster unit, remote + receiver (pre-paired), battery charger, magnetic USB cable, tie-down rope, battery pack (varies by configuration).
Safety: Read manual before use. Not for under 12. Wear PFD. Use in water >0.5m. Keep clear of propeller. Rinse after saltwater use. Use official batteries only.
TD-Y02D Servo Steer
SUP · Kayak · Inflatable
| 2kg (no battery)
±35°steering
450Wrated power
11.5kgfmax thrust
9km/htop speed
272mmcompact
Servo steering · precision

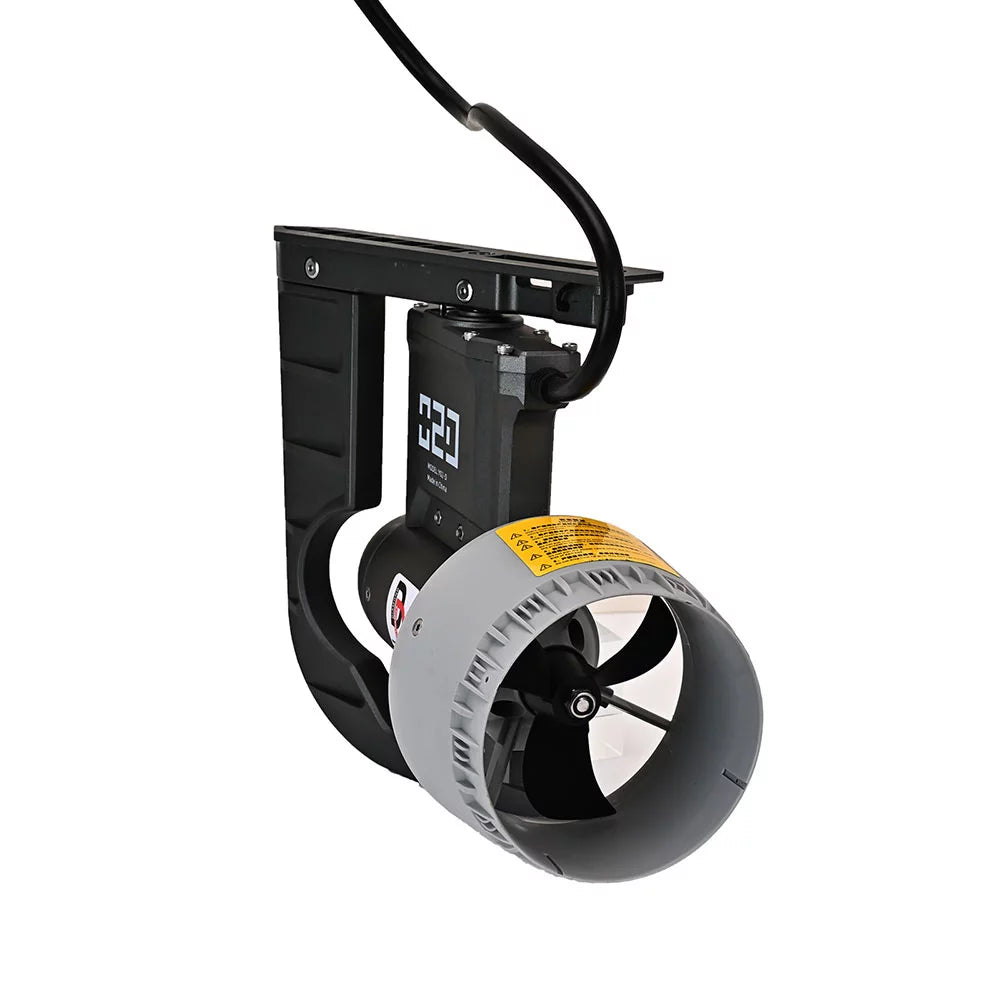

Built-in servo, ±35° precision deflection, no paddling or leaning. Joystick on remote, fingertip control, instant response.
11.5kgf
3000r/min
9km/h
Dual emergency override
Battery options
| Model | Type | Capacity | Weight | Runtime | Range |
|---|---|---|---|---|---|
| B1 | Li-ion | 36Ah | 4.95kg | 100 min | 14.9 km |
| B2 | LiFePO₄ | 15Ah | 2.73kg | 45 min | 6.75 km |
| B3 | LiFePO₄ | 30Ah | 5.5kg | 90 min | 13.5 km |
| B75S | LiFePO₄ | 75Ah | 13.8kg | 270 min | 40.5 km |
Test: 20°C fresh water, 100kg SUP load. Actual varies. Custom capacity available.
Silent advantage · whisper operation
Low noise < 55 dB
Fish-friendly, no scare
Peaceful paddling
Nature undisturbed
No cavitation rattle
Dawn/dusk stealth
Dual-mode remote
Mode 1 servo + trim
Mode 2 differential twin-drive
cruise lock floats
Receiver hub
Output / power ports · emergency forward
blue linked purple bind
Charger specs
B1/B2/B3: 25.2V / 120W·75W
B75S: 28.8V / 230W
charging full
Tool-free install
Slide → pin → strap → connect
fresh/salt
Receiver
- Output (signal)
- Power (battery)
- Emergency (slow→med→fast)
- blue: linked
- purple: bind
Remote
- Cruise lock
- Key lock
- Signal 4-bar
- Battery level
- Magnetic USB
Dual emergency cut-off
Bind: Mode1+Mode2 6s
Depth >0.5m · carry paddle · supervise minors
